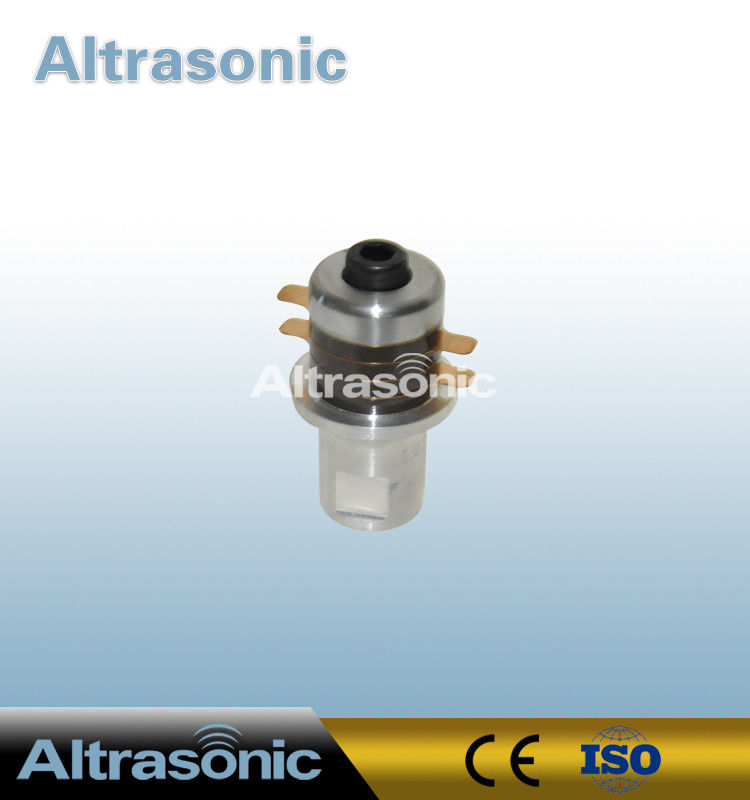

30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing

30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing
30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing 30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing 30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing

Large Image :  30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3030-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing

Description
Product Name: 30Khz High Frequency Ultrasonic Welding Transducer Without Housing Frequency: 30KHz
Power: 800W Connect Screw: M8 Or M8*1
Ceramic Diameter: 30mm Qty Of Ceramic: 4Pcs
Application: Welding
High Light:

high frequency ultrasonic transducer

,

portable transducer

30 Khz High Frequency Ultrasonic Transducer For Welding Without Housing



Model HS-3030-4D
Frequency 30khz
Output power 800watt
Joint bolt M8 or M8*1
Ceramic disc Diameter 30 mm
Quantity of Ceramic discs 4 pcs
Capacitance 6.2-6.9nf
Amplitude 8um
Application Welding



Description:



Ultrasonic welding transducer is one of main products of Altrasonic, which used the piezoelectric effort to realize transduction between electric and sound energy.

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Applications:



Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation
