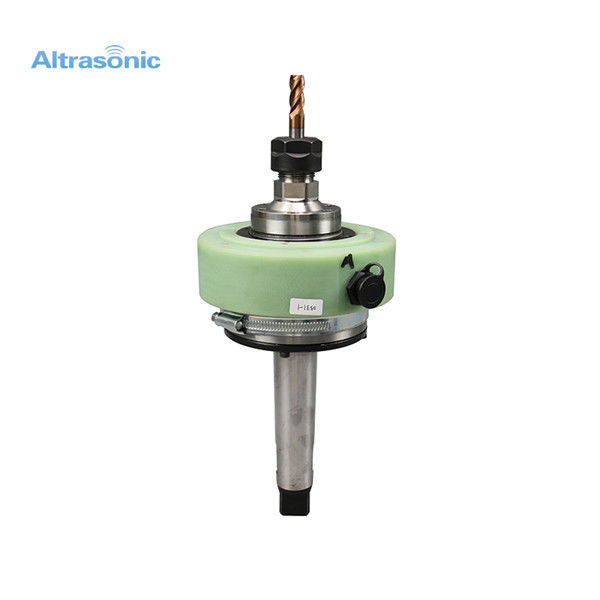

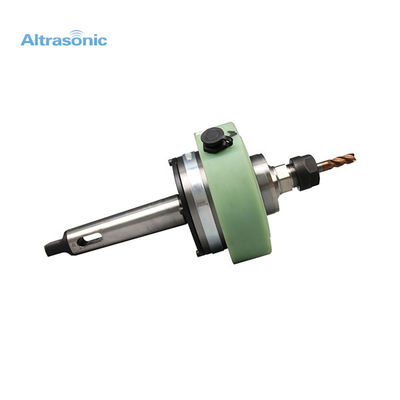

Ceramic Matrix Ultrasonic Assisted Machining Step / Continuous

Ultrasonic Machining with Hard Materials such as Ceramic Matrix

Technical Parameters:

Resonance point amplitude: 10um or more;

Max Speed: 30000 RPM

Matching tool: carbide end mill head Φ2-Φ13; disk cutter Φ50;drilling hear Φ1~6

Power: 500W

Ultrasonic Machining

Ultrasonic machining is changing the manufacturing industries with its superlative performance. The main reason why this machining process is used in the manufacturing area is because it evolves less heat in the process. All the operations done with the ultrasonic machining method are cost effective and best in results. Ultrasonic machining is an abrasive process which can create any material into hard and brittle form with the help of its vibrating tool and the indirect passage of abrasive particles towards the work piece. It is a low material removal rate machining process.

Competitive Advantages:

• Ultrasonic Drilling Machines have been developed in various models equipment.
• Frequency, power can be real-time monitoring, power 30-99% adjustable, with automatic alarm protection, easy to operate;
• Less than 4% weight loss in drilling on an average.

Ultrasonic Machining with Hard Materials such as Ceramic Matrix

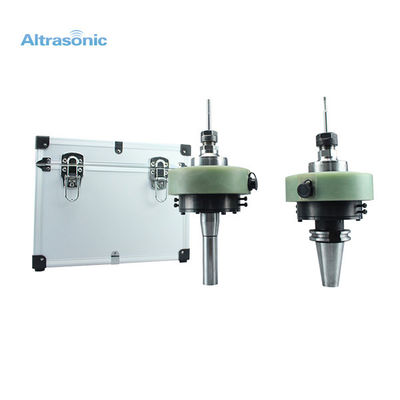

Packing&Shipping:
