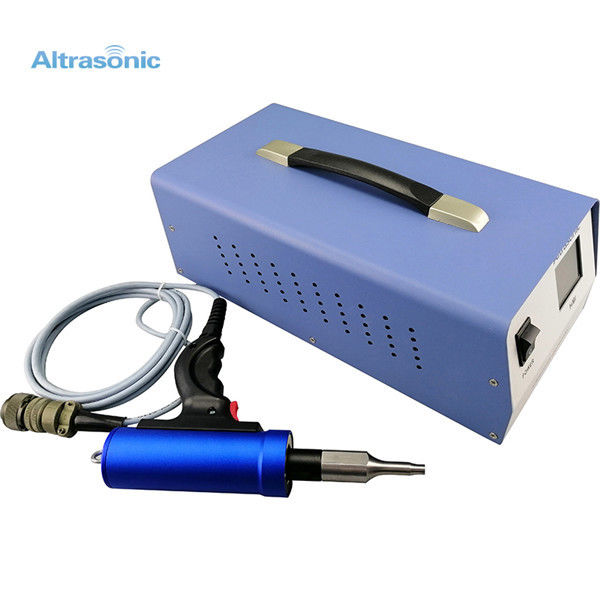

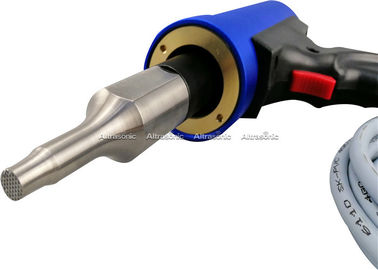

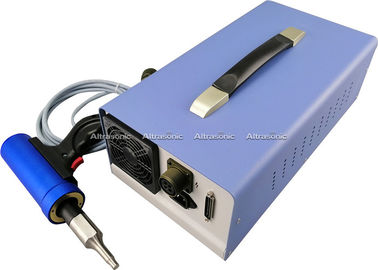

Automatic Resonance Handheld Ultrasonic Spot Welding Machine 35Khz ± 1KHz

Automatic Resonance Handheld Ultrasonic Spot Welding Machine 35Khz ± 1KHz

Specifications:

The use of ultrasonic technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. Thus, the ultrasonic welding machine is suitable for auto mudguard welding.

Advantages and Disadvantages of Ultrasonic in Auto Industry:

Advantages:

• Application in riveting, forming and welding
• Light weight, easy to take, easy to operate (handheld)
• Equipped with welding timer
• Easty to set time welding
• Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
• FET power output
• Automatic resonance
• Maintain the amplitude function automatically
• Starting: achieving maximum power with 105msec

Disadvantages:

Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).

Different Applications in Plastic Welding:

• Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
• Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
• Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.
