Antenna / modules Uitrasonic Plastic Welding Machine with Servo System

Antenna / modules Uitrasonic Plastic Welding Machine with Servo System
Antenna / modules Uitrasonic Plastic Welding Machine with Servo System Antenna / modules Uitrasonic Plastic Welding Machine with Servo System Antenna / modules Uitrasonic Plastic Welding Machine with Servo System Antenna / modules Uitrasonic Plastic Welding Machine with Servo System

Large Image :  Antenna / modules Uitrasonic Plastic Welding Machine with Servo System

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D70S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month

Antenna / modules Uitrasonic Plastic Welding Machine with Servo System

Description
Product Name: Uitrasonic Plastic Welding Machine Frequency: 70khz
Power: 100W Frequency Tuning Method: Auto Tuning
Welding Application: Smart Card
High Light:

plastic spot welder

,

plastic ultrasonic welding

Weld the Antenna and Modules of Contactless Inlay with Servo System





Description:



1.This machine is designed for embedding or implanting the copper wire onto INLAY middle sheets as per the designed track with advanced ultrasonic technology.

2.It is well known as the most reliable and economical machines in INLAY sheet production.

3.Mitsubishi 3-axis servo control and MOXA motion control system are applied in the control system to ensure high position precision.

4.The antenna shape and size can be easily designed in AUTOCAD software.

5.The special worktable design is available to ensure that various sheet layout (3×8/4×8/5×5) can be embedded in the same machine.

6.The antenna embedding applies the advanced ultrasonic technology in order to ensure good embedding result and high efficiency.




Specifications:



Frequency 70khz
Power 100w
Power Adjusting Step or continuous
Switch Handle , foot switch,or linked outside
Working Time control 0-999seconds
Generator Digital generator
Cable 5M, national standard
The threading hole Ø0.3m or design according to customers' need
Cooling down method Compressed air
Outer housing aluminium or nylon





Applications:



Radio frequency identification (RFID) inlays are manufactured throughout the world for many purposes: biometric passports, the contactless smart card market (e-ID, electronic healthcare cards, payment cards, public transportation), and for dual interface applications. At the same time, wire-embedded high frequency (HF) RFID antennas are available and offer a number of advantages over printed, etched, or galvanized variations.

Among others, the ability to freely select shapes is enticing for card and passport manufacturers, since this can lead to competitive advantages. Further benefits, such as environmental friendliness, durability, and improved product quality, also should be mentioned.



Ultrasonic Inlay Sheet Antenna Embedding Machine
Smart card manufacturing equipment macnine
IC card production equipment machine
Contactless IC card production equipment machine





Competitive Advantage:



The amplitude can be adjusted to ensure the RFID embedding stability;

· High frequency, reach to 70khz, welding more smoothly;

· Ultrasonic system design precision is very high, good customer feedback;

· In particular, digital power supply design, has been in a leading position in the ultrasonic industry;

· Automatically tracks frequency and has a very wide frequency range that extends the life of the ultrasonic units.

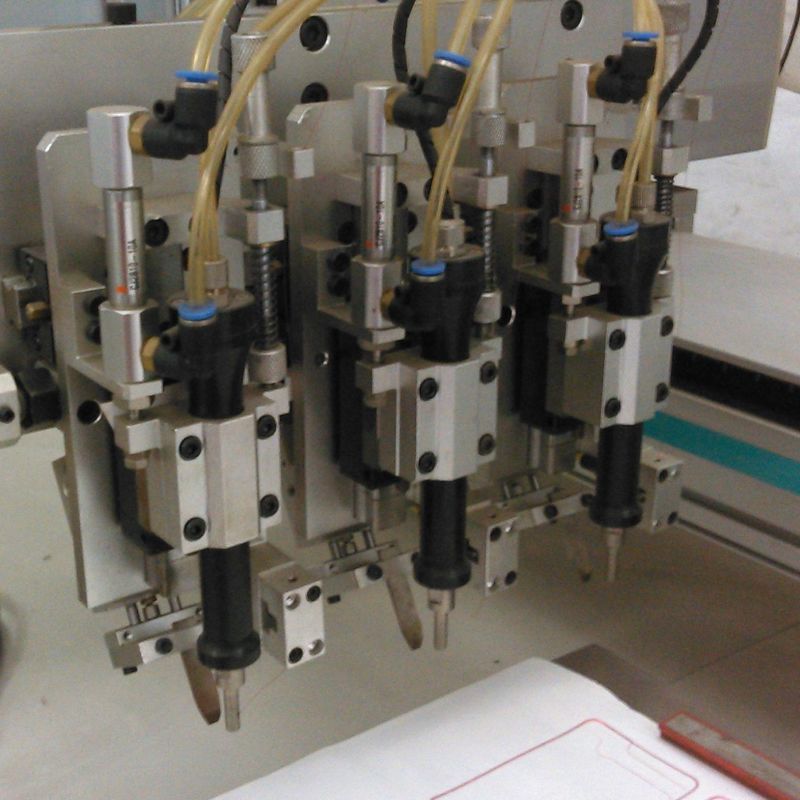

· Cabinet type, can control 3/4/5 burying heads to work at the same time

· touch screen control or external PLC control, easier operation

· 20%-100% energy continuously adjustable on the line, used in all sizes of smart card embedding applications

· wear-resistant titanium alloy tool head, suitable for 0.05-0.2 mm copper wire

· light body design, beautiful and durable, good heat dissipation

· 24-hour work, uniform energy output

· Suitable for high-speed embedding applications, embedding twice the speed of 60K devices





Weld the Antenna and Modules of Contactless Inlay with Servo System





Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 0



Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 1





Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 2



Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 3



Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 4



Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 5



Payment:



Tag: ultrasonic spot welder,sonic welding machine



Antenna / modules Uitrasonic Plastic Welding Machine with Servo System 6
