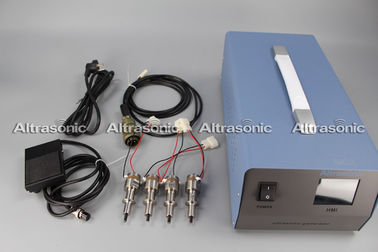

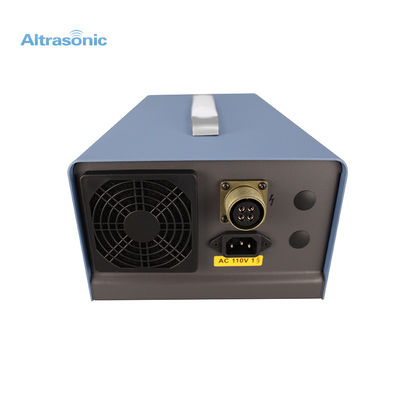

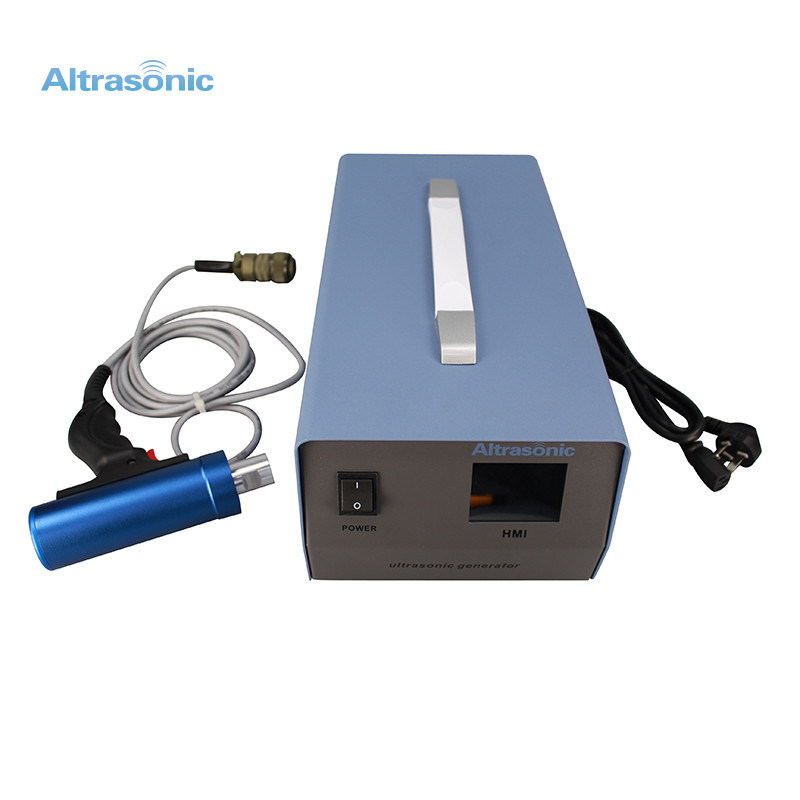

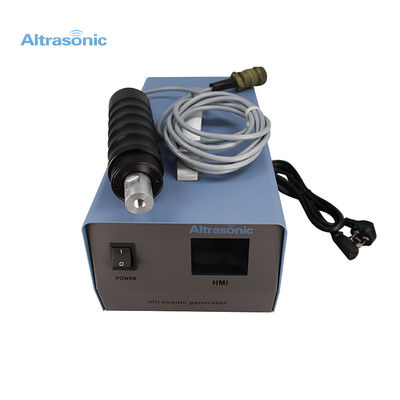

60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator

60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator
60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator 60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator 60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator 60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator

Large Image :  60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PB60
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: packed in carton with foam inside
Delivery Time: 5 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

60Khz Ultrasonic Power Driver for Medical Cutting / Ultrasonic Digital Generator

Description
Product Name: Ultrasonic Digital Generator Frequency: 60khz
Output Power: 500w Voltage: 220V 50/60Hz
Currents: 10A Working Type: Continous
Environment Temperature: 5-50℃
High Light:

ultrasonic generator

,

ultrasound generator


60Khz Ultrasonic Power Driver Advanced Technology Application in Medical Cutting



Description:
The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.



Specifications:


Model HS-PB60
Frequency 60khz
Output power 500watt
Frequency tuning method continue or pulse optional
Size 420*220*130 mm
Input Voltage 220V/110V 50/60HZ
Net weight 7kgs
Temperature ≤300℃
Moisture ≤85%RH
Power adjustable 1%-99%
Applications For Welding and Cuting machine



Applications:
Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.



Competitive Advantage:
★Control with touch screen
★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.


Comparison:


  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement
