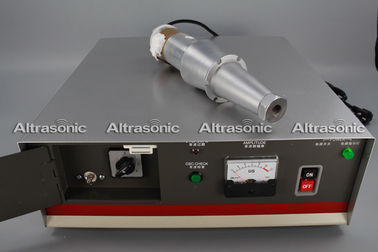

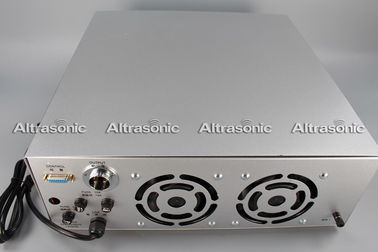

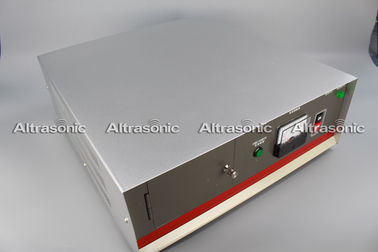

2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine

2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine
2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine 2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine 2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine

Large Image :  2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-ASA-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine

Description
Product Name: Ultrasonic Digital Generator Frequency: 15khz
Output Power: 2000w Voltage: 220V 50/60Hz
Currents: 15A Working Type: Continous
Environment Temperature: 5-50℃ Size: 560*560*240mm
Net Weight: 15kgs
High Light:

ultrasonic generator

,

ultrasound generator



2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine







Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.






Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.






Specifications:



Model HS-ASA-2000
Frequency 20khz
Output power 2000watt
Frequency tuning method Intermittent
Size 560*560*240 mm
Voltage 220V 50/60HZ
Net weight 15kgs
Temperature ≤300℃
Moisture

≤85%RH








Competitive Advantage:

★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.







Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement











2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine



2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine 0



2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine 1



2000W Ultrasonic High Power Supply Generator for Non-woven Mask Making Machine 2
