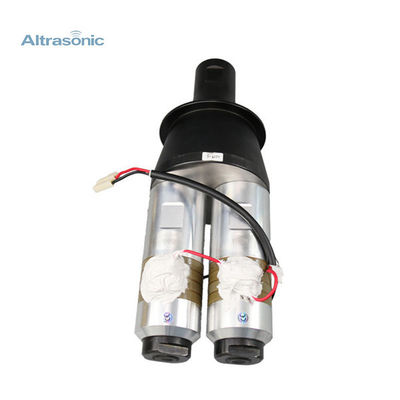

Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application

China Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier
Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application supplier

Large Image :  Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-6015

Payment & Shipping Terms:

Minimum Order Quantity: 5,000 units per month
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 15khz
Ceramic Diameter: 60mm Booster Color: Gray And Black Optional
Type: Standard Type Application: Welding Big Plastic Samples

15khz Ultrasonic Double Horn Transducer for High Power Application in Welding Industry



Specifications:



Model HS-6015-4Z double
Frequency 15khz
Output power 4200watt
Joint bolt M20 1.5
Ceramic disc Diameter 60 mm
Quantity of Ceramic discs 8 pcs
Capacitance 8-10 nf ,10-12nf , 12.5-13.5nf
Amplitude 30-40 um
Application Welding





Description:



The transducer with double horn can generator larger amplitude than single item. So it is applied to difficult welding environment requirements, including big auto parts and other big plastic samples.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



15khz Ultrasonic Double Horn Transducer for High Power Application in Welding Industry

Standard Type 15 khz Ultrasonic Double Horn Transducer For High Power ApplicationStandard Type 15 khz Ultrasonic Double Horn Transducer For High Power ApplicationStandard Type 15 khz Ultrasonic Double Horn Transducer For High Power Application
