High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine

China High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine supplier
High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine supplier High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine supplier High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine supplier High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine supplier

Large Image :  High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT30

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 30Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A

High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine



Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. These welders combine technical sophistication with ease of use.



Specifications:



Model: HS-GT30
Frequency: 30Khz
Horn: customized
Weight: 10KG
Generator: digital generator





The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head.



The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films. ALTRASONIC will find the best solution for your thermoplastic welding needs.



Attention for Welding



The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).



Applications In Automobile:



Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.

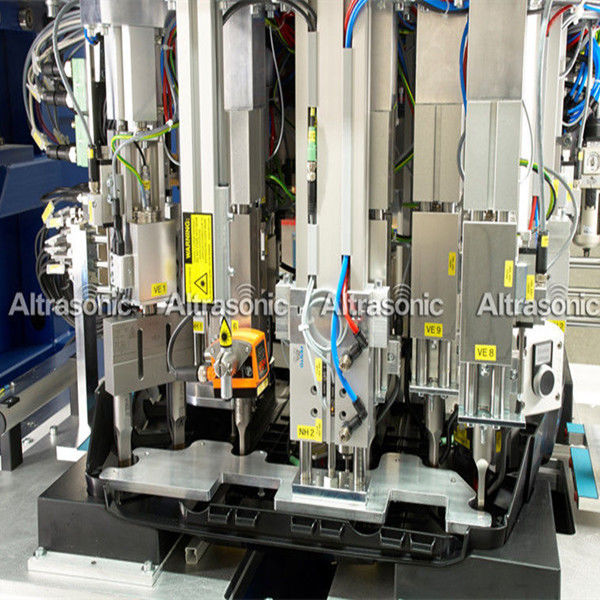

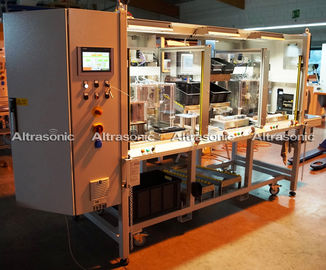

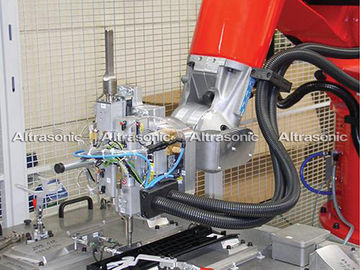

Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.





Advantages:



1. application in riveting, forming and welding

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easty to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec





High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine

High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine

High Frequency Automobile Mudguard Ultrasonic Riveting Welding Machine



Tag: ultrasonic spot welder,portable spot welder
