Product Details:
|
| Product Name: | Ultrasonic Riveting Welding Machine | Frequency: | 30Khz |
|---|---|---|---|
| Power: | 300-1000W | Inlet Power: | AC220V±10V Or AC110V±10V , 50/60HZ |
| Auotomatic Resonance Frequency Range: | ±1000hz | Working Environment: | +5~+50℃ |
| Keeping Environment: | -5~+70℃ | Net Weight: | 10Kgs |
| Max Current: | 15A | ||
| High Light: | portable spot welding machine,sonic welding machine |
||
PP PC ABS Handheld Riveting Welder / Ultrasonic Riveting Welder For Automotive Interior Parts
Specifications:
| Model | HS-40 | HS-35 | HS-30 | HS-28 | HS-20 |
| Frequency | 40khz | 35khz | 30khz | 28khz | 20khz |
| Power | 500W | 500~800w | 500~800w | 500~800w | 500~1000w |
| Horn | ≤10mm | ≤10mm | ≤10mm | ≤12mm | ≤13mm |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 64mm |
| Weight of welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg | 1.5kg |
| Digital generator | ● | ● | ● | ● | ● |
| Analog generator | ● | ● | ● | ● | ● |
Description:
Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K, 30K three different frequencies. Can be different for the following purposes;
Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
Competitive Advantages in Auto Industry:
Portable Ultrasonic Sounproof Spot Welder Principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.

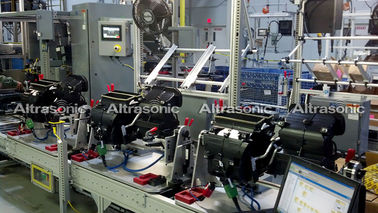

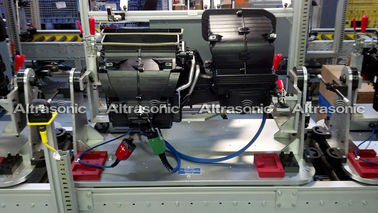

Applications In Automobile:
Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
PP PC ABS Handheld Riveting Welder / Ultrasonic Riveting Welder For Automotive Interior Parts
