High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer

High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer
High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer

Large Image :  High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3035-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month

High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer

Description
Product Name: 35KHz 800W Ultrasound Converter Frequency: 35KHz
Power: 800W Connect Screw: 1/2-20UNF
Ceramic Diameter: 30mm Qty Of Ceramic: 4Pcs
Application: Welding
High Light:

high frequency ultrasonic transducer

,

portable transducer

35KHz Ultrasonic Transducer Heatproof 800W with 4 Pieces Import Piezoelectric Sandwiched Ceramic Discs



Specifications:



Model HS-3035-4D
Frequency 35khz
Output power 800watt
Joint bolt M8
Ceramic disc Diameter 30 mm
Quantity of Ceramic discs 4 pcs
Capacitance 2.7~3.1 nf ,
Amplitude 10um
Application Welding



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.




Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



35KHz Ultrasonic Transducer Heatproof 800W with 4 Pieces Import Piezoelectric Sandwiched Ceramic Discs

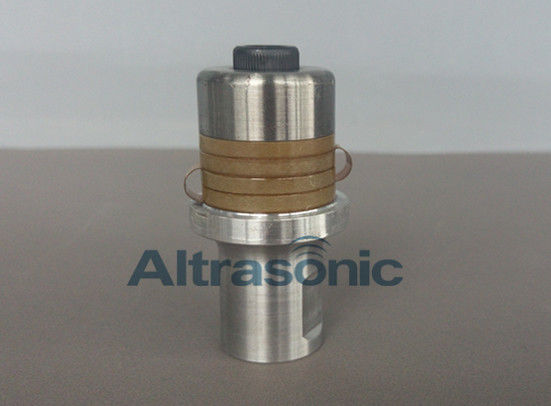

High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer 0

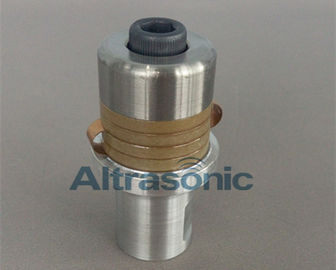

High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer 1

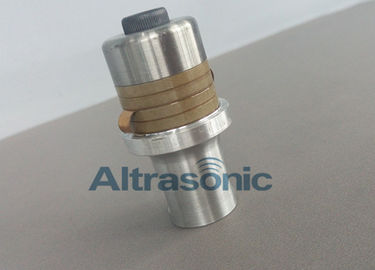

High Frequency Heatproof 800W 35KHz Ultrasonic Welding Transducer 2
