30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade

30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade
30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade 30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade 30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade 30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade

Large Image :  30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month

30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade

Description
Frequency:: 30Khz Power:: 200W
Knife:: Replaceable Blade: Titanium
High Light:

ultrasonic cutting equipment

,

ultrasonic cutting devices

30KHz Ultrasonic Cutting Machine with Titanium and Replaceable Blade for Automation System


ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,
wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,
the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.



Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W

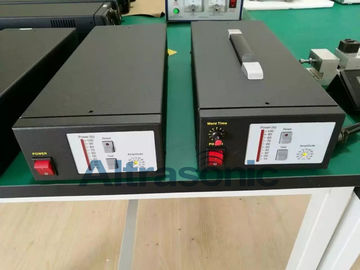

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;
Cut blade 5pcs;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel





TYPICAL MATERIALS PROCESSED

  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials



Competitive Advantage:

  • The use of high power ultrasonic transducer vibrating element, ensure the long time stable working.
  • The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
  • Cutting all kinds of ordinary tool to cut products, solve production problems.
  • Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost.
  • Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool.
  • Installation, easy to use, almost does not change the original cutting process.
  • Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special.
  • Can use air-cooled, water-cooled design, adapt to various working conditions and environment.



Problem and solution:



Item Problem Cause description Solution
  Power switch to “I” the light is out Power plug loose Plugging in
Power line break Fix it yourself or send back
Power switch bad contact
Fuse is broken

Power light and

running light are OK

Air plug and socket not connected Tighten the connection position
Handle have abnormal Sound

Clean the card slot, use new

blade

Intermittently use, but the handle

keeping hot

Please send it back
Out-put air plug break
Screw loose Tighten the screw
Running light is ok Running switch bad Please send it back



30KHz Ultrasonic Cutting Machine with Titanium and Replaceable Blade for Automation System



30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade 0

30KHz Ultrasonic Cutting Machine With Titanium / Replaceable Blade 1
