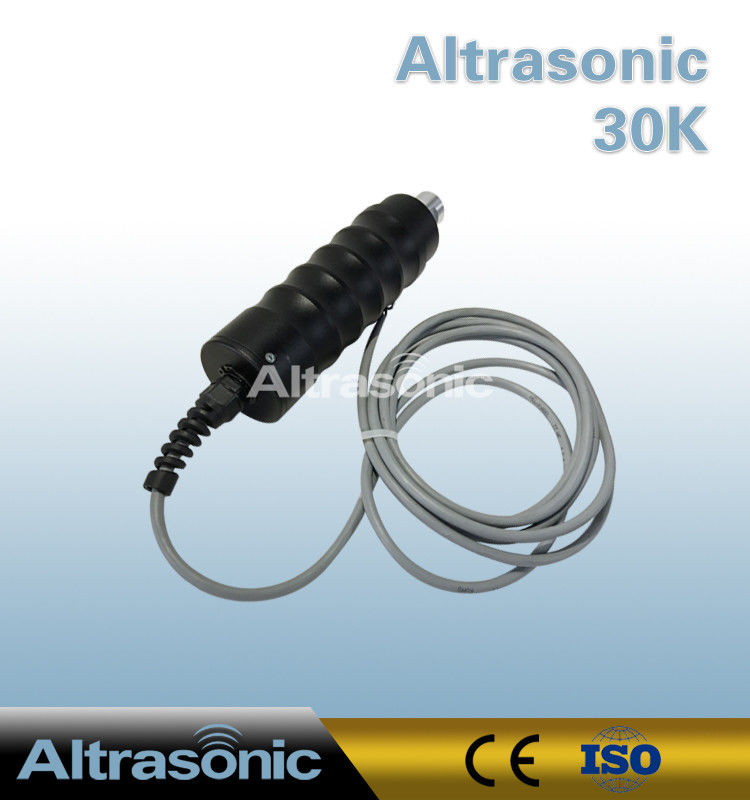

Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W

Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W
Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W

Large Image :  Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 30Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A
High Light:

portable spot welding machine

,

sonic welding machine

Plastic Riveting Auto Trim Spot Welding Equipment in Ultrasonic Technology



Definition of ultrasonic auto plastic welding:



The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head. The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.



Specifications:

Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Ultrasonic welding is a high-tech technology of sintered plastic products. The use of this technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs in the auto trim welding.



Advantages and Disadvantages of Ultrasonic in Auto Industry.



Advantages:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Disadvantages:

Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).



Different Applications in Plastic Welding



  • Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
  • Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
  • Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.


Principle of Portable Ultrasonic Plastic Spot Welding:


When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and



Components:



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.

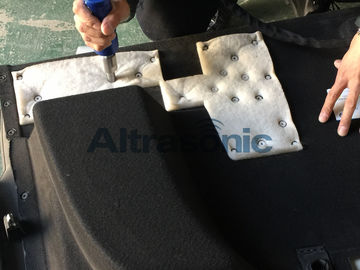

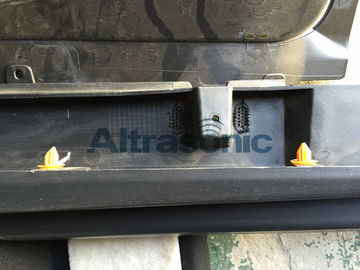

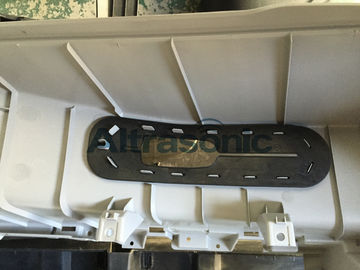

Plastic Riveting Auto Trim Spot Welding Equipment in Ultrasonic Technology



Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W 0



Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W 1



Plastic Riveting Auto Trim Ultrasonic Spot Welding Equipment 300W - 1000W 2







Tag: ultrasonic spot welder,portable spot welder
