Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard

China Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard supplier
Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard supplier Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard supplier Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard supplier Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard supplier

Large Image :  Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Riveting Welding Machine Frequency: 35Khz
Power: 300-1000W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A

Hand-operated High Frequency 35Khz Ultrasonic Riveting Welding Machine for Car Mudguard

The use of ultrasonic technology can replace past production of flux, adhesives, buckles or other mechanical fixation, thereby improving the production efficiency and reduce costs. Thus, the ultrasonic welding machine is suitable for auto mudguard welding.

Specifications:

ModelHS-40HS-35HS-30HS-28HS-20
Frequency40khz35khz30khz28khz20khz
Power500W500~800w500~800w500~800w500~1000w
Horn≤10mm≤10mm≤10mm≤12mm≤13mm
Housing Diameter44mm44mm44mm44mm64mm
Weight of welder1.0kg1.0kg1.0kg1.0kg1.5kg
Digital generator
Analog generator



Advantages and Disadvantages of Ultrasonic in Welding of Mudguard.

Advantages:
1. application in riveting, forming and welding
2. light weight, easy to take, easy to operate (handheld)
3. Equipped with welding timer
4. Easty to set time welding
5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
6. FET power output
7. Automatic resonance
8. Maintain the amplitude function automatically
9. Starting: achieving maximum power with 105msec

Disadvantages:
Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).

Factors in Controlling Ultrasonic Spot Welding

Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.With the amplitude, the higher the amplitude, the higher the temperature rise. The pressure is applied to the molded article using a cylindrical gaze. General compressed air pressure is 0.1-0.3MPa (pressure gauge), sometimes higher. But if the use of high pressure, it will hinder the cylindrical vibration.

Principle of Amplifying
They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

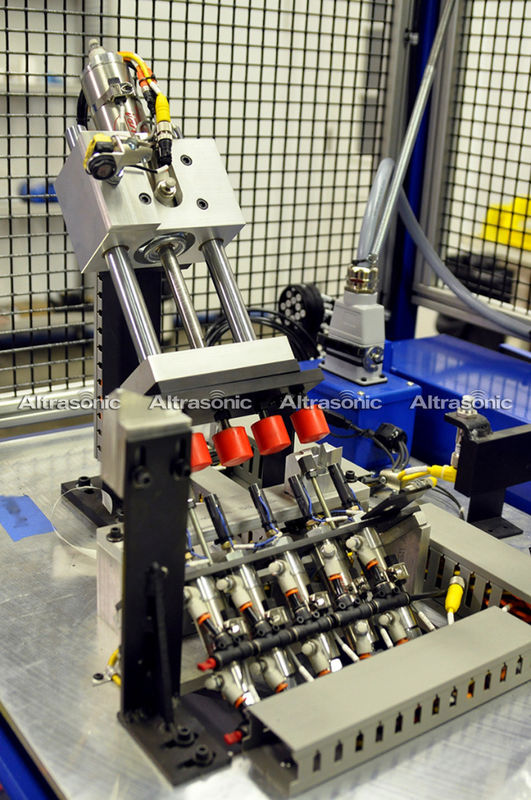

 Hand-operated High Frequency 35Khz Ultrasonic Riveting Welding Machine for Car Mudguard

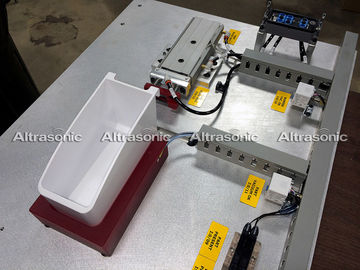

Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard



Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard,



Hand Operated Frequency 35Khz Ultrasonic Riveting Welding Machine For Car Mudguard



Tag: ultrasonic spot welder,portable spot welder
