800W Smart Auto Tunning Mudguard Riveting Portable Spot Welding Equipment

800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment
800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment 800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment 800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment 800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment

Large Image :  800W Smart Auto Tunning Mudguard Riveting Portable Spot Welding Equipment

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT40
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month

800W Smart Auto Tunning Mudguard Riveting Portable Spot Welding Equipment

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 40Khz
Power: 300-800W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 10Kgs
Max Current: 15A
High Light:

portable spot welding machine

,

portable spot welder

800W Smart Portable Auto Tunning Mudguard Riveting Ultrasonic Spot Welding Machinery



Specifications:



  Gun Type& Cylinder Type
Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg



Advantages:

  1. Application in riveting, forming and welding
  2. Light weight, easy to take, easy to operate (handheld)
  3. Equipped with welding timer
  4. Easty to set time welding
  5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  6. FET power output
  7. Automatic resonance
  8. Maintain the amplitude function automatically
  9. Starting: achieving maximum power with 105msec



Disadvantages:

Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).



Different Applications in Plastic Welding



  • Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.
  • Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
  • Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.


Principle of Portable Ultrasonic Plastic Spot Welding:


When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and



Components:



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.



800W Smart Portable Auto Tunning Mudguard Riveting Ultrasonic Spot Welding Machinery

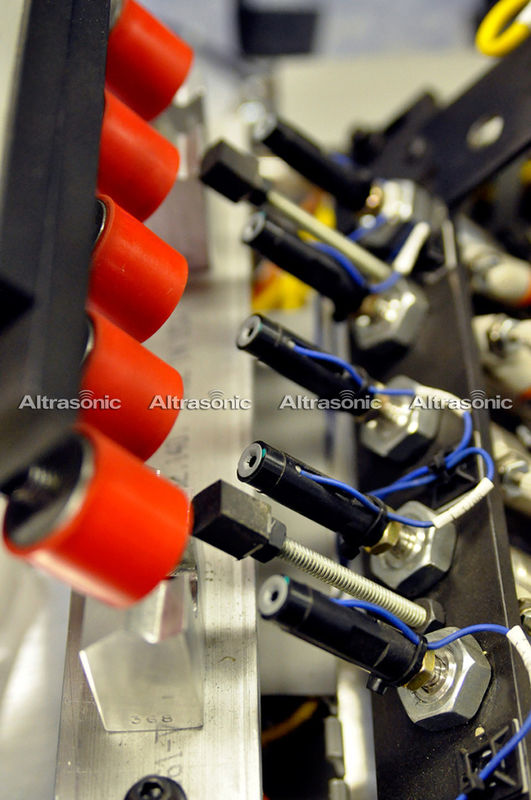

800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment 0

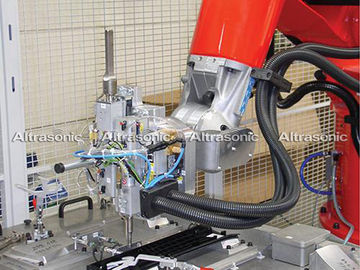

800W Smart  Auto Tunning Mudguard Riveting Portable Spot Welding Equipment 1
