100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts

China 100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts supplier
100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts supplier 100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts supplier 100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts supplier 100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts supplier

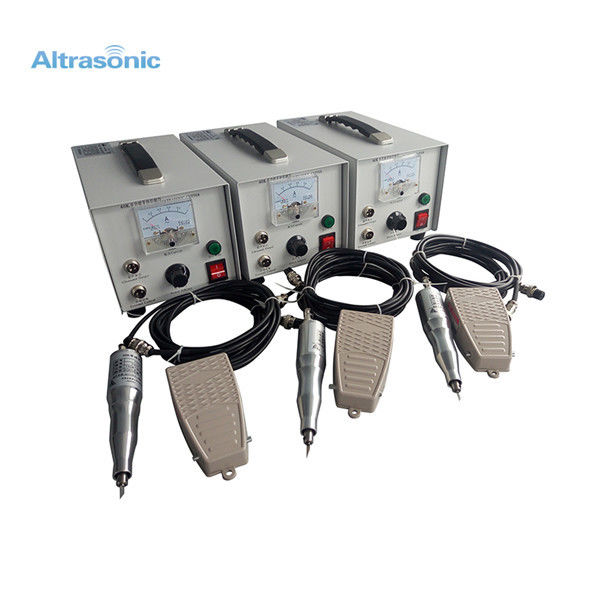

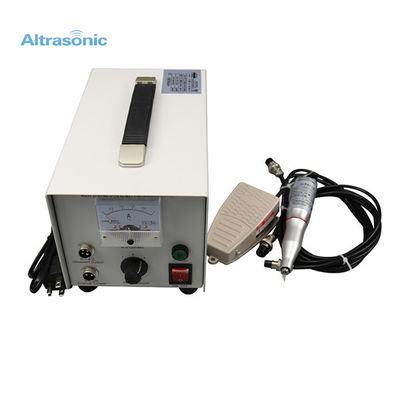

Large Image :  100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Case
Delivery Time: 7 working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Product Name: 40K Ultrasound Manual Cutting Machinery Knife: Replaceable
Power: 100W Generator: Analog Generator
Size Of Generator: 155 X 265 X 170mm Length Of Cable: 3M
Outer Skin: Aluminum Voltage: 220V / 110V

40K Ultrasound Manual Cutting Machinery for Plastic in Automobile Spare Parts Industry



100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts


Specifications:



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W
Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;
Cut blade 25pcs;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter Magnalium alloy, titanium alloy, stainless steel



Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.

The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut, the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition. The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



Applications:



Natural fibers

Synthetic fiber

Thin plastic products(Such as plastic film, cell phone case)

All types of paper, bottom film

Rubber, silicone

Repair of printed circuit board copper foil

ABS,PP,PE … other organic plastic sheet less than 2mm

Various types of synthetic fabrics



Competitive Advantage:


★ The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

★ The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

★ Cutting all kinds of ordinary tool to cut products, solve production problems

★ Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

★ Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool

★ Installation, easy to use, almost does not change the original cutting process

★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special

★ Can use air-cooled, water-cooled design, adapt to various working conditions and environment



Problem and solution:



Item Problem Cause description Solution
  Power switch to “I” the light is out Power plug loose Plugging in
Power line break Fix it yourself or send back
Power switch bad contact
Fuse is broken

Power light and

running light are OK

Air plug and socket not connected Tighten the connection position
Handle have abnormal Sound

Clean the card slot, use new

blade

Intermittently use, but the handle

keeping hot

Please send it back
Out-put air plug break
Screw loose Tighten the screw
Running light is ok Running switch bad

Please send it back







40K Ultrasound Manual Cutting Machinery for Plastic in Automobile Spare Parts Industry



100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts100W 40K Ultrasound Manual Cutting Machinery For Automobile Spare Parts
