40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade

China 40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade supplier
40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade supplier 40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade supplier 40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade supplier 40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade supplier

Large Image :  40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSFC82

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: carton
Delivery Time: 7 workdays after recipt the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Products Name: Ultrasonic Food Cutter Frequency: 40KHz
Power: 500W Material: Food Industry Approved Titanium
Blade Width: 82mm Advantage: PLC Controller

40KHz 500W Ultrasonic Food Cutting With 82mm Titanium Blade Smooth Slicing Edge For Bakery Cake Candy Cheese Fish Meat



Description:

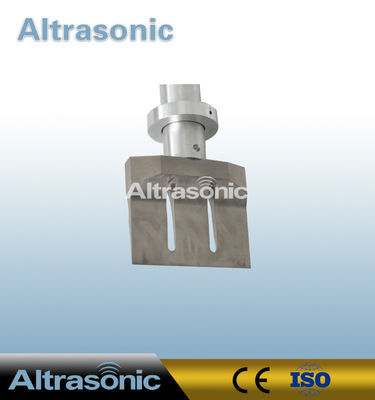

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.

Ultrasonic cutters can smoothly cut difficult-to-cut materials.
They are small in size and do not require large installation areas. Special equipment is not required for the installation. They are small enough to be hand-held for many operations. They can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

The ultrasonic cutter is composed of a “transducer” that generates vibration and an “oscillator” that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance.

In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



Parameters:



FREQUENCY 40Khz
POWER 500W 800W
INPUT AC110-240V, 50/60Hz
POWER CONTROLLER Stepping or continuous
MATERIAL OF CUTTING HEAD Food Industry Approved Titanium
MACHINE WIGHT 4 kg-16KG
ACCESSORIES Foot switch, additional blade
COOLING DEVICE Compressed air mouth can be installed.
CABLE LENGTH 2M or customized
FOOT SWITCH Available



Advantages:



  • High energy conversion efficiency, more than 90%;
  • The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;
  • Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;
  • Makes the cost of production flow minimization;
  • Especially for cutting high viscosity food;
  • Cutting is very hygienic;
  • The cut food looks neat and beautiful;
  • Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.



Application:



Bakery and Snack food, Candy and confectionery, Cheese, Fish, Prepared meat, Vegetable, Health Bars, Chocolates, Sandwich and wrap cutting, Dry fruit, Poultry, Potted, Processed Meat, Ground meat.





40KHz 500W Ultrasonic Food Cutting With 82mm Titanium Blade Smooth Slicing Edge For Bakery Cake Candy Cheese Fish Meat

40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade

40KHz 500W Ultrasonic Food Cutting Machine With 82mm Titanium Blade
