20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power

China 20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power supplier
20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power supplier 20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power supplier 20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power supplier 20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power supplier

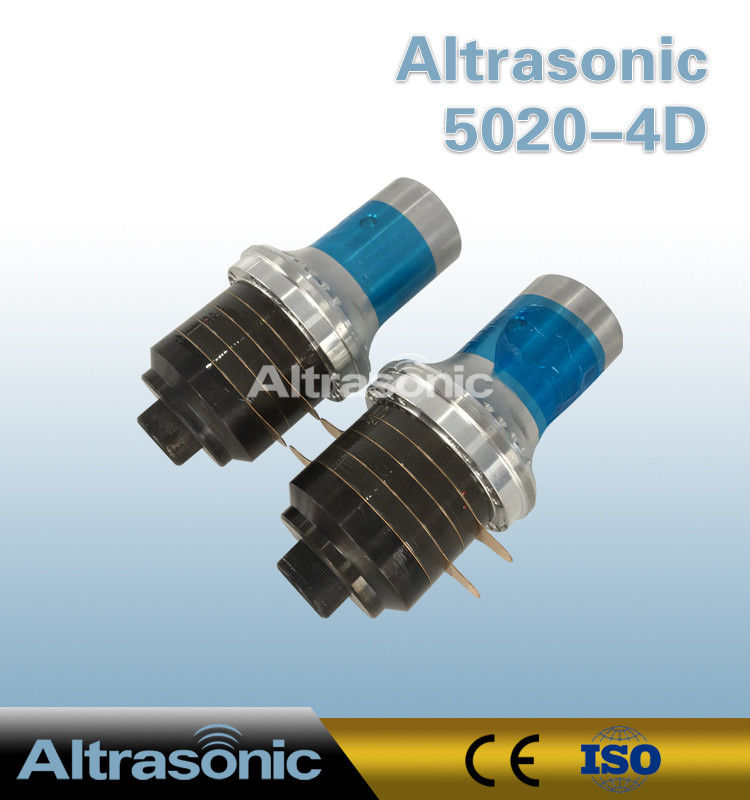

Large Image :  20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-4D

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 days after receiving the payment
Payment Terms: T/T or Western Union
Supply Ability: 10000 PCS per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Ceramic Diameter: 50mm
Type: Branson Type Joint Bolt: 1/2-20UNF
Capacitance: 11~12nF Application: Welding Sewing Cutting

20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power



Specifications:



Model HS-5020-4D
Frequency 20 Khz
Output power 1500 W
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance 11~12 nF
Amplitude 12 um
Application Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.


Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine,

it can welding the material more easy and stable. Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep longer time.





Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power



20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power





20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power





20Khz 1500W Piezo Ultrasonic Welding Sewing Cutting Transducer High Power



Tag: high frequency ultrasonic transducer,portable transducer
