35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine

China 35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier
35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier 35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier 35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier 35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier 35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine supplier

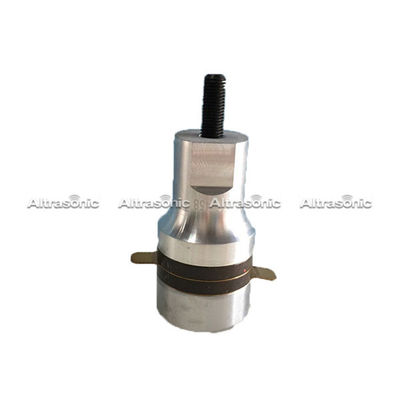

Large Image :  35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3535-2D

Payment & Shipping Terms:

Minimum Order Quantity: 2 PCS
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 work days afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 35 Khz
Ceramic Diameter: 35 Mm Capacitance: 4.5 - 5 Nf
Power: 500 W Application: Welding Machine
Amplitude: 6 Um Ceramic Disc: 2 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional

35Khz Ultrasonic Welding Transducer 2 Ceramics Spot Welder Sewing Machine







Description:



The 35Khz 500W Ultrasonic Welding Transducer For Branson Welding machine / spot welder is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Specifications:



Model HS-3535-2D
Frequency 35 khz
Output power 500 watt
Joint bolt M8x1
Ceramic disc Diameter 35 mm
Quantity of Ceramic discs 2 pcs
Capacitance 4.5 - 5 nf
Amplitude 6 um
Application welding machine







Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.







Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.



2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time

and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.



3. One by one testing to ensure that each transducer performance are excellent.



4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

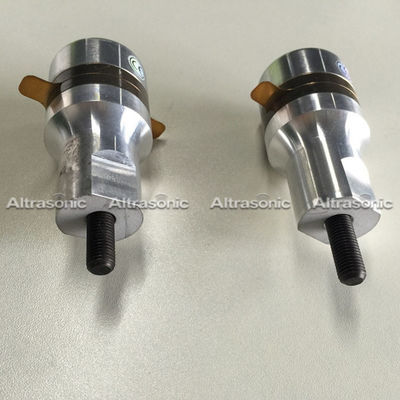

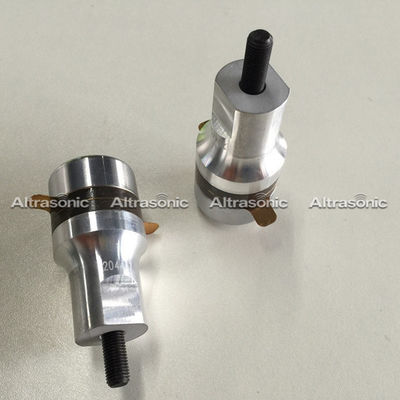

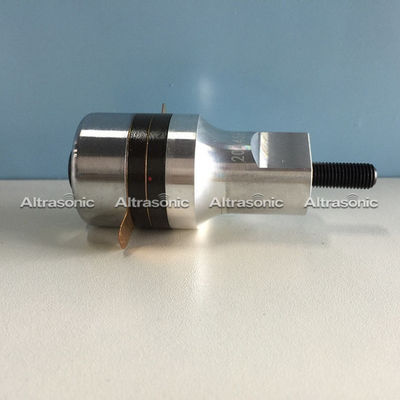

35Khz Ultrasonic Welding Transducer 2 Ceramics Spot Welder Sewing Machine



35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine35Khz Ultrasonic Welding Transducer , 2 Ceramics Spot Welder Sewing Machine

Tag: ultrasonic piezoelectric transducer,high frequency ultrasonic transducer
