200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator

200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator
200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator 200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator 200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator

Large Image :  200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PB20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

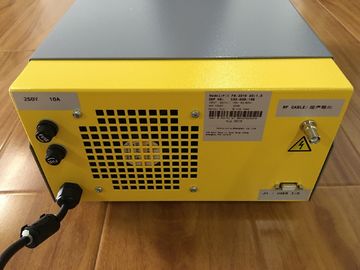

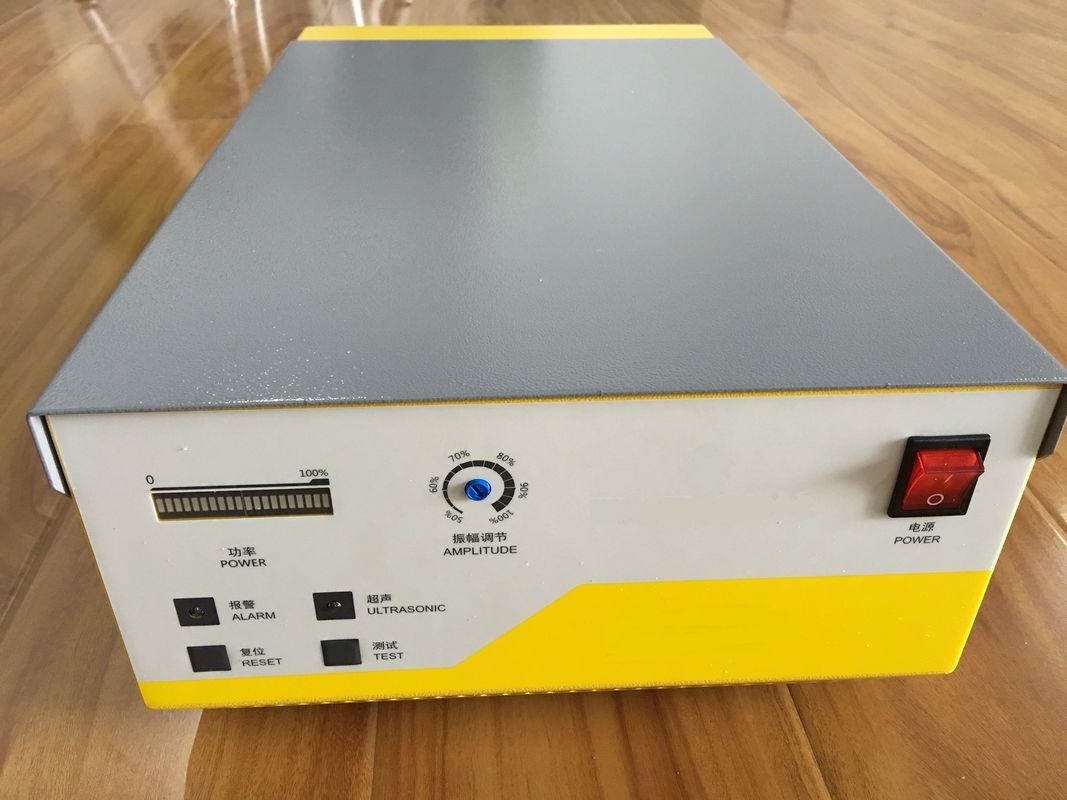

200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator

Description
Product Name: Ultrasonic Digital Generator Frequency: 20khz
Output Power: 1500w Voltage: 220V 50/60Hz
Currents: 10A Working Type: Continous
Environment Temperature: 5-50℃ Size: 502*296*173mm
Net Weight: 12.9kgs
High Light:

ultrasonic generator

,

ultrasound generator

200CPM Cycle Rate Ultrasonic 20khz 1500w Automatic Searching Frequency Digital Generator



Description:


The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.


Applications:


Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.


Specifications:



Model HS-PB20
Frequency 20khz
Output power 1500watt
Frequency tuning method Continous
Size 502*296*173 mm
Voltage 220V 50/60HZ
Currents 10A
Environment temperature 5-50℃
Cycle Rate 200CPM
Moisture

≤85%RH

Net weight 12.6kgs


Competitive Advantage:


★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.

Comparison:


  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement







WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



200CPM Cycle Rate Ultrasonic 20khz 1500w Automatic Searching Frequency Digital Generator



200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator 0



200CPM Cycle Rate Ultrasonic Power Supply Automatic Searching Frequency Digital Generator 1

.
