Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt

Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt
Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt

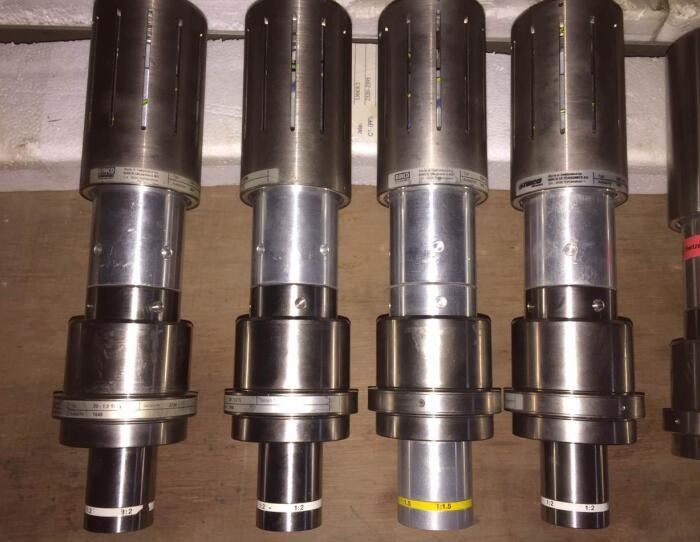

Large Image :  Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSR20K
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in Box
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month

Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt

Description
Product Name: Ultrasonic Converter Frequency: 20 Khz
Joint Bolt: 1/2-20 Unf Power: 1000 - 2000watt
Application: Welding Machine Amplitude: 20 Um
Ceramic Disc: 4 Pcs Material: Titanium, Aluminum Materials Optional
Protective Housing: Aluminum And Stainless Steel Optional
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers

20khz 2000watt Ultrasonic Converter Replacement Rinco machine , welding application



Specifications:



Model HSR20K
Frequency 20 khz
Output power 1000 - 2000 watt
Joint bolt 1/2-20unf
Ceramic disc Diameter 50-70mm
Quantity of Ceramic discs 4 pcs
Bolt Fixing with transducer body
Amplitude 20 um
Application welding machine





Description:



The Replacement Converter for Rinco 20khz machine Direct replacement for the Rinco 20khz machine that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.

Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced

(one time).





Applied Range:

Replacement ultrasonic converter for 20khz Rinco machine, for use with 20KHz welding machine.



Competitive Advantage:



  • Titanium materials and Aluminum materials optional.
  • Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
  • One by one testing to ensure that each transducer performance are excellent.
  • In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you,
  • OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
  • Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
  • For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
  •

Titanium material 35khz Ultrasonic Converter Replacement Rinco series , welding application



Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt 0



Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt 1



Welding Ultrasonic Converter Replacement Rinco Machine 20khz 2000watt 2
