35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected
35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected 35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected 35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected

Large Image :  35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSR3035-4A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in foamed plastic firstly,and then reinforced with case for outer packingonth
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per month

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected

Description
Product Name: Ultrasonic Transducer For Rinco Machine Frequency: 35Khz
Power: 300watt-1000watt Connect Screw: M8
Ceramic Diameter: 25mm And 35mm For Selection Qty Of Ceramics: 2pcs
Capacitance: 1.9-2.5nf Application: Welding , Sealing And Cutting
Finish: Depending On Customer's Requirements
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected



Specifications:



Model HSR3035-4A
Frequency 35khz
Output power 300watt -1000watt
Joint bolt M8
Ceramic disc Diameter 25 mm and 35mm for selection
Quantity of Ceramic discs 2 pcs
Capacitance 1.9-2.5nf
Amplitude 4um
Application Welding, Sealing and Cutting



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.




Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



  • Stable parameters
  • Easy matching with ultrasonic power supply
  • Superior raw materials
  • Accept OEM cooperation

Replacement 35khz Rinco Ultrasonic Transducer , 2 ceramics , with housing and wires connected

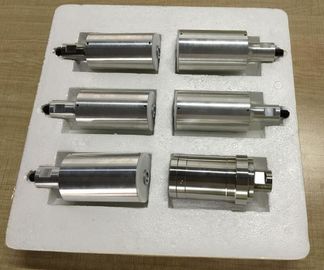

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected 0

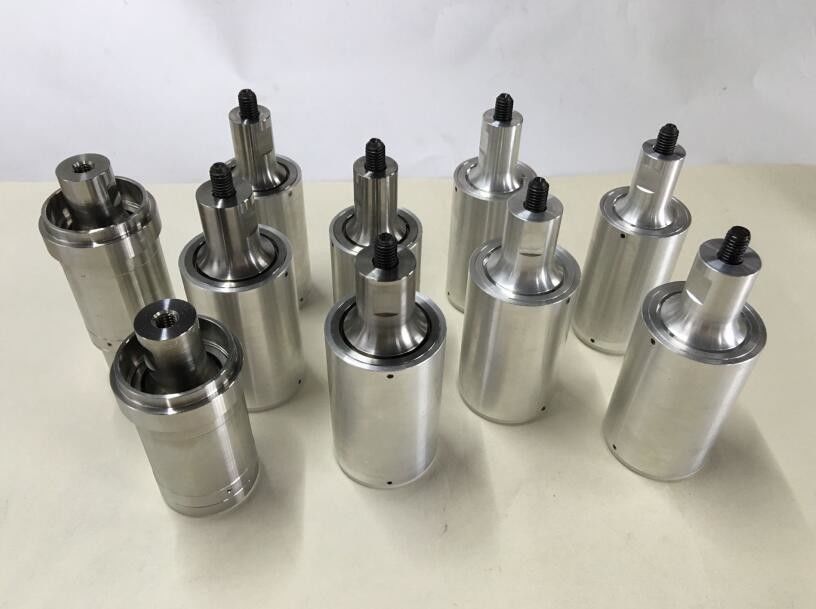

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected 1

35khz Rinco 2 ceramics Ultrasonic Converter with housing and wires connected 2
