800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine

800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine
800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine 800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine 800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine

Large Image :  800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 100 units per month

800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine

Description
Product Name: Replacement Transducer For Dukane Machine Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 5000-6000pf
Power: 800watt Application: Welding Machine
Amplitude: 10 Um Ceramic Disc: 2 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer



800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine



Specifications:



Model

HSD20

Frequency

20 khz

Output power

800 watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

2 pcs

Capacitance

5000-6000pf

Amplitude

10 um

Application

welding machine



Description:



The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane is applied to Dukane type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
 clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.





What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine

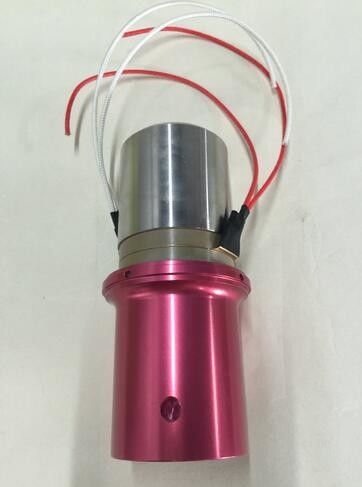

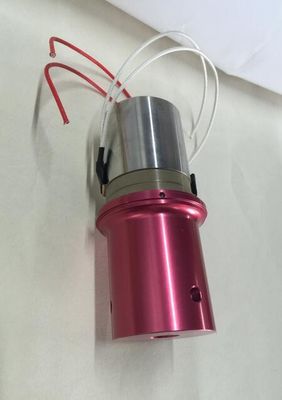

800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine 0800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine 1
800 watt 20 khz transducer , high power ultrasonic transducer matching with Dukane machine 2
