Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine

China Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine  supplier
Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine  supplier Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine  supplier

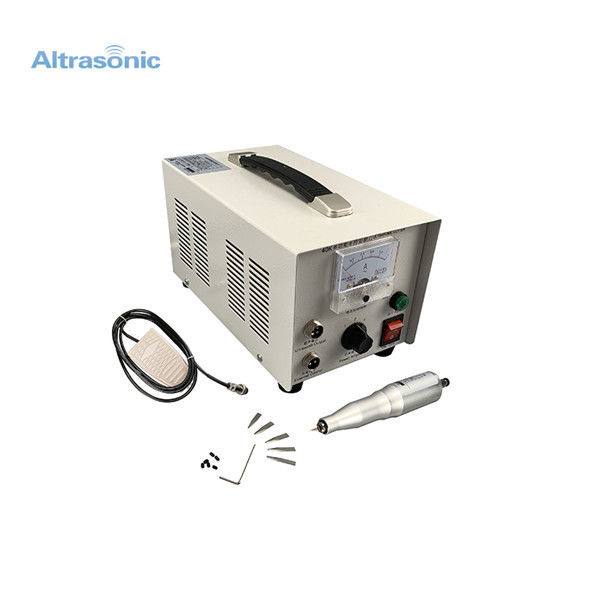

Large Image :  Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Frequency: 40Khz Power: 100W
Knife: Replaceable

Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine



Specification:



Model

HSQ40B-AB

Frequency

40KHZ

Output Power

100W

Generator

Analog generator, 155 x 265 x 170mm

Handle

Φ32×170

Size of cutter

Blade replaceable

Length of cable

3M

Outer skin

Aluminum

Weight

8KG

Voltage

220V / 110V

Accessory

Foot switch1pc;
Cut blade 25pcs;
1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs

Material of cutter

Magnalium alloy, titanium alloy, stainless steel



Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,
ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,
wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,
the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



  • Environment-friendly (No noise, no smoke, no air contamination)
  • Smooth cutting of difficult-to-cut materials
  • Small hand-held size(can be attached to automotive machinery arms)
  • No special installation equipmen


TYPICAL MATERIALS PROCESSED

  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials

Competitive Advantage:


★ The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

★ The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

★ Cutting all kinds of ordinary tool to cut products, solve production problems

★ Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

★ Cutting tool complete varieties, can also be customized according to customer process shaped cutting

 tool

★ Installation, easy to use, almost does not change the original cutting process

★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for

cutting special

★ Can use air-cooled, water-cooled design, adapt to various working conditions and environment



Problem and solution:



Item

Problem

Cause description

Solution



Power switch to “I” the light is out

Power plug loose

Plugging in

Power line break

Fix it yourself or send back

Power switch bad contact

Fuse is broken

Power light and

 running light are OK

Air plug and socket not connected

Tighten the connection position

Handle have abnormal Sound

Clean the card slot, use new

blade

Intermittently use, but the handle

 keeping hot

Please send it back

Out-put air plug break

Screw loose

Tighten the screw

Running light is ok

Running switch bad

Please send it back

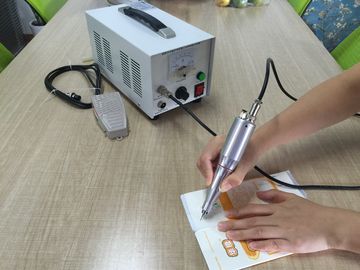

 Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine

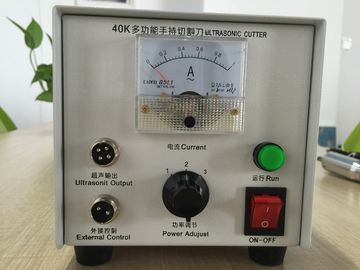

Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine


Trimming deflashing Ultrasonic Cutting Machine to repair automotive engine
