Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer

Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer
Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer

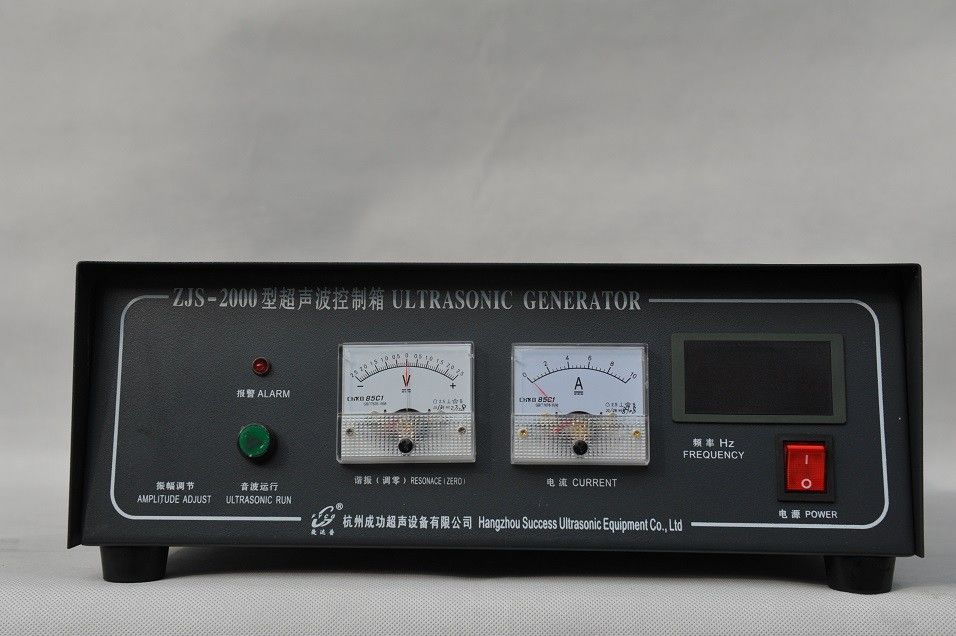

Large Image :  Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: BV
Model Number: HS-ASA-2000L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer

Description
Product Name: Analog Ultrasonic Generator Frequency: 20khz
Output Power: 2000w Voltage: 220V 50/60Hz
Working Type: Intermittent Size: 410*600*180 Mm
Net Weight: 14kgs
High Light:

ultrasound generator

,

ultrasound power supply

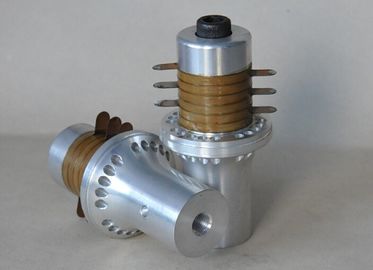

Analog Power Supply With 4pcs Ceramic 20khz 2000W Ultrasonic Welding Transducer for Non-woven Mask Making Machines



Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.

Specifications:

Model HS-ASA-2000L
Frequency 20khz
Output power 2000watt
Frequency tuning method Intermittent
Size 410*600*180 mm
Voltage 220V 50/60HZ
Net weight 14kgs
Temperature ≤300℃
Moisture

≤85%RH





Competitive Advantage:

★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.

Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement



Analog Power Supply With 4pcs Ceramic 20khz 2000W Ultrasonic Welding Transducer for Non-woven Mask Making Machines



Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer 0



Ceramic Ultrasonic Frequency Generator , 20khz 2000W Ultrasonic Welding Transducer 1
