20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer

20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer
20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer 20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer 20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer

Large Image :  20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-6D
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton, PE foam inside
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month

20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer

Description
Product Name: Ultrasonic Welding Transducer Frequency: 20Khz
Ceramic Diameter: 50MM Capacitance: 19-25nf
Power: 2000 Watt Application: Welding Machine
Amplitude: 12 Um Ceramic Disc: 6 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer



Ultrasonic Welding Transducer 20Khz/2KW for Ultrasonic Welding Machine



Specifications:



Model HS-5020-6D
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-25nf
Amplitude 12 um
Application welding machine



Description:



The 20Khz 2000W Piezoelectric Ultrasonic Welding Transducer / Ultrasonic Oscillator for welding equipment is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Ultrasonic Welding Transducer 20Khz/2KW for Ultrasonic Welding Machine

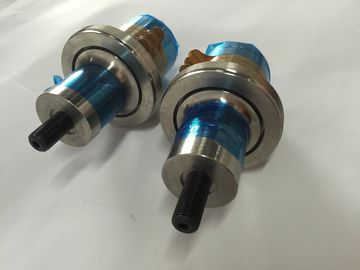

20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer 0

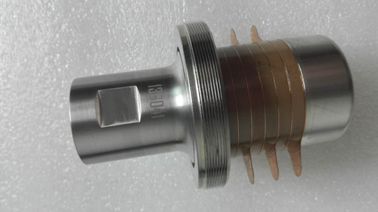

20 Khz 2KW Ultrasonic Welding Transducer , ultrasonic piezoelectric transducer 1
