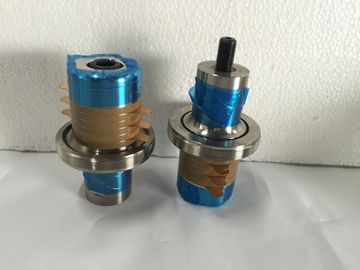

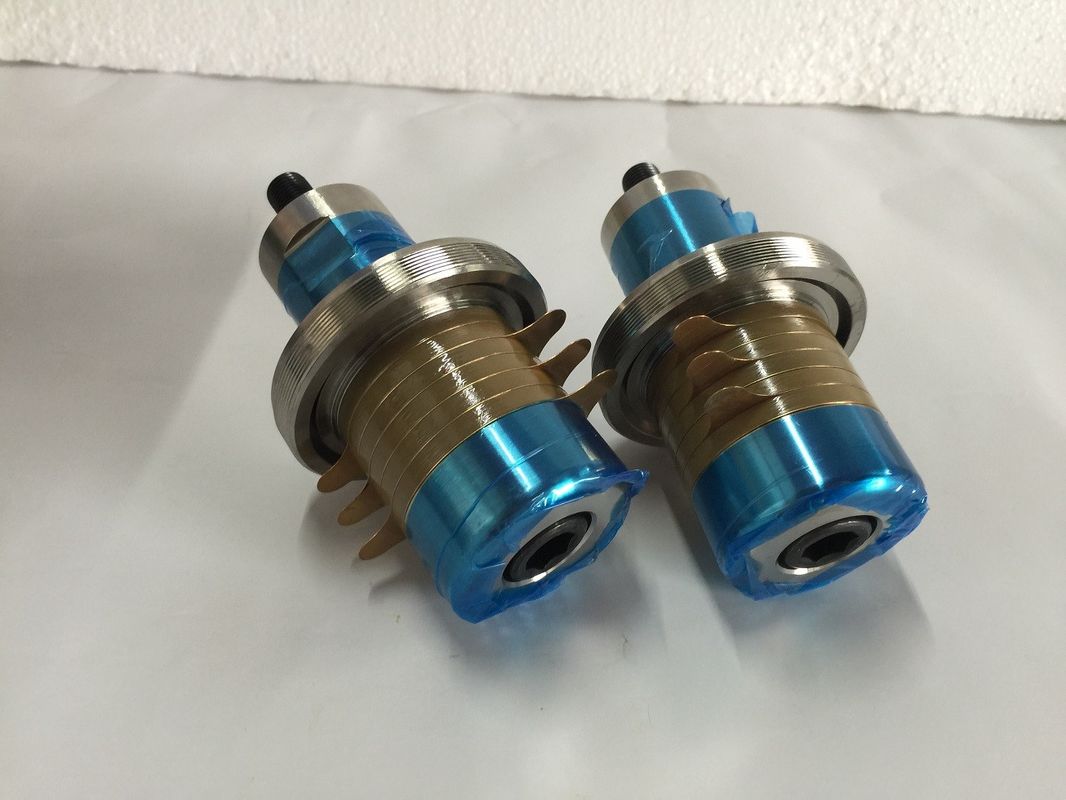

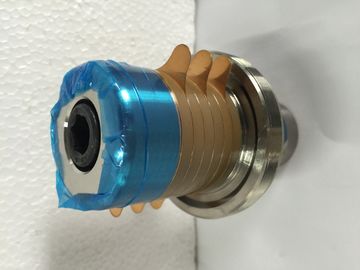

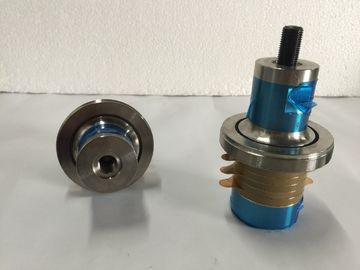

3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials

3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials
3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials 3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials 3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials 3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials

Large Image :  3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HDHDW20
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in foamed plastic firstly,and then reinforced with case for outer packingonth
Delivery Time: 15 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 200 pcs per month

3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials

Description
Product Name: High Power Ultrasonic Transducers Titanium Materials Frequency: 20Khz
Power: 3000w Connect Screw: 1/2-20UNF
Ceramic Diameter: 50MM Qty Of Ceramics: 6pcs
Capacitance: 19-21nf Application: Welding
Finish: Depending On Customer's Requirements
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer

3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials



Specifications:



Model HSHDW20
Frequency 20khz
Output power 3000watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 19-21nf
Amplitude 18um
Application Welding



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.




Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials



3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials 0



3000w Ultrasonic Welding Transducer High Power Ultrasound Transducer Titanium Materials 1
