Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting
Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting

Large Image :  Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-3828-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 2 pcs
Price: negotiation
Packaging Details: Packed in foamed plastic firstly, and then reinforced with carton for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting

Description
Product Name: Ultrasonic Welding Transducer With Booster Connect Screw: 1/2-20UNF
Ceramic Diameter: 38mm Capacitance: 3.8-4.3nf
Type: Columnar Type Application: Welding
High Light:

ultrasound transducer

,

piezo ultrasonic transducer

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting



Specifications:



Model HS-3828-2Z
Frequency 28khz
Output power 300watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 38mm
Quantity of Ceramic discs  2 pcs
Capacitance 3.8-4.3nf ,
Amplitude 6um
Application Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.




Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

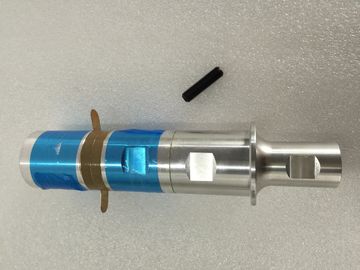

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting

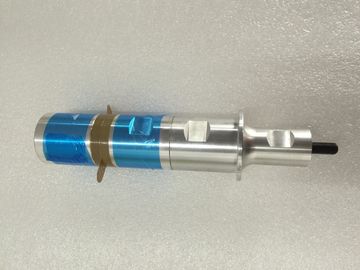

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting 0

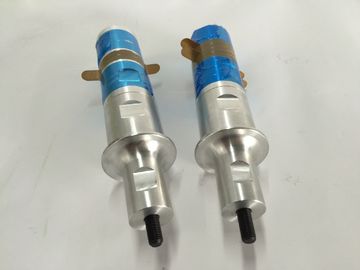

Columnar Type High Frequency Ultrasound Transducer For Sonochemistry And Cutting 1
