The ultrasonic generator also called ultrasonic power supply, electronic box and ultrasonic controller. It is an important part of high power ultrasonic system.
Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.
|Capacitance||500 – 30000 pF|
|Output Power||100 – 4200 W|
|Voltage||220 V 50 Hz|
Real time monitoring: Monitoring the system operating frequency and power
Parameter adjustment: According to the different requirements, adjust the power, amplitude, the running time
Automatic equipment with frequency: Once the initial setup, can work continuously without the need to adjust the generator.
The automatic amplitude control: Changing load transducer work process can automatically adjust the driving characteristics of ultrasonic tool head, ensure the stable amplitude.
System protection: The system work in the unsuitable operation environment, the generator will stop working and alarm display, to protect the equipment from damage.
Amplitude adjustment: Amplitude can instantly increase or decrease in the work process, the amplitude of the set range: 0%~100%.
Automatic frequency search: Working frequency can be automatically measured and stored in the tool head.
Non resonant state (forced vibration): General driving power supply must be working in the resonant state; the power supply can be the special requirements of customers, stability in the non resonant state, very suitable for some special application of ultrasonic.
| ||Analog generator||Digital generator|
|Circuit||Analog circuit, discrete components||Digital circuit, the chip control|
|Automatic search||×|| |
|Automatic frequency tracking||×|| |
|Frequency adjustment range||±0.15 KHz||±0.5 KHz|
|Power regulation||×|| |
|24 hours of continuous work||×|| |
|Non resonant condition||×|| |
|Add the PLC protocol||×|| |
|Automatic circuit protection||Bad, easy to cause the damage of components||Good|
|Repair method||Professional repair||Module replacement|

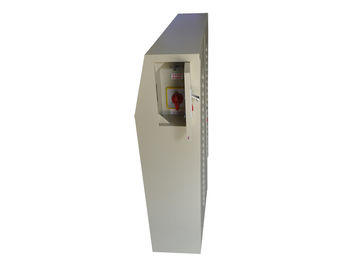

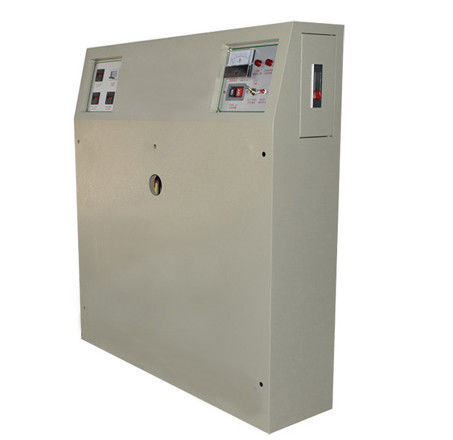

4200w High Power Analog Ultrasonic Power Supply For Fabric Welding
