1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production

China 1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production supplier
1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production supplier 1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production supplier

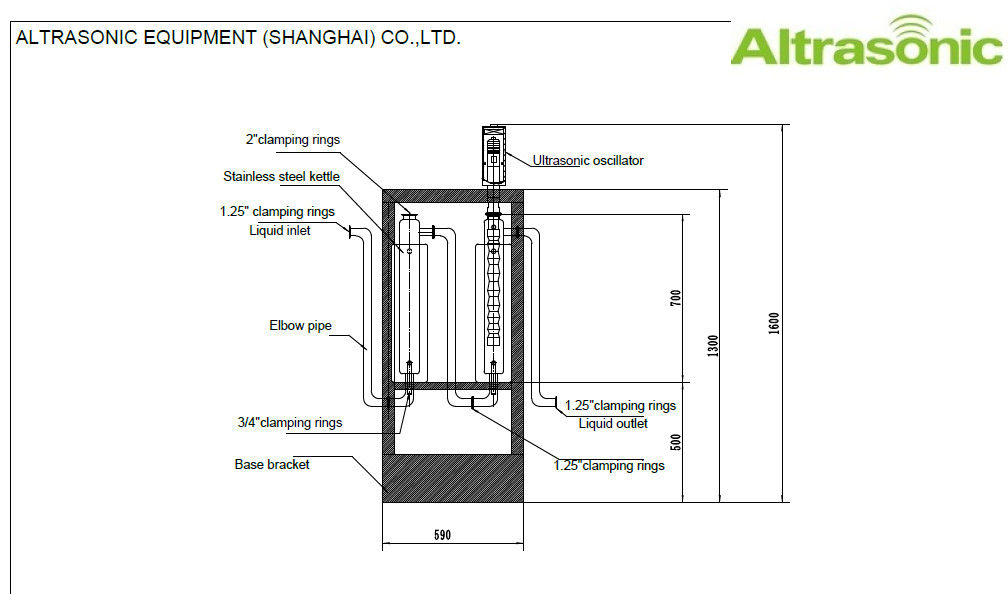

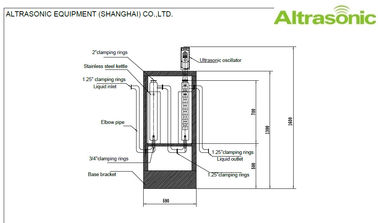

Large Image :  1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS2020-F

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 2000w Weight: 35Kg
Generator: Digital Mode Control: Remote Control
Application: Cavitation Probe: Different Size And Type Optional
Capacity: More Than 1000L

1000 L / Hr Ultrasonic Sonochemistry Ultrasound Sonochemical For Biodiesel Production




Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.



Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.





Lab level





Recommendation of ultrasonic system (exfoliated type)



Item No. HS205-L HS2020-L
Capacity 5L 20L
Output power 500W 2000W
Main advantages High output intensity, high cavitation effect
Frequency 20 kHz±1kHz




Recommendation of ultrasonic system (Dispersing type)





Item No. HS2010 HS2015 HS205-F HS2010-F HS2020-F
Capacity 20L 30L 10L 20L 30L
Output power 1000w 1500w 500w 1000w 2000w
Frequency 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz
Working type Reactor / container Reactor / container

Recycling

/ Flow chamber

Recycling

/ Flow chamber

Recycling

/ Flow chamber





Recommendation of ultrasonic machine (Industrial level)



Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and

pipe fittings



Item No. HS-GS10 HS-GS25 HS-GS50 HS-GS100 HS-GS200 HS-GS300
Annual output

10tons

25tons 30tons 100tons 200tons 300tons
Output Power

2000w

2000w 2000w 2000w 2000w 2000w
Total Power

6000w

(2000w*3)

12000w

(2000w*6)

24000w

(2000w*12)

48000w

(2000w*24)

72000w

(2000w*36)

96000w

(2000w*48)

Frequency

20kHz±1kHz

20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz
Input Voltage

110v  or 220v

110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v
Total Volume

5㎡

10㎡

20㎡ 40㎡ 60㎡ 80㎡



Altrasonic perfect the graphene

  1. The development of graphene industry demand high quality graphene urgently; (The traditional way of producing need to add more oxidant and reducing agent, while the ultrasonic exfoliation of graphite can greatly reduce the additive, greatly improve the purity and reduce the sizeof graphene.)

  2. The large scale production of graphene;

  3.  Before using Graphene. It is better to disperse by ultrasonic;

  4.  Ultrasonic dispersion for more stable graphene dispersion fluid.

  5.  In recently years, with its excellent performance and a variety of potential applications, graphene been developed fast. At the same time, people need a lot of high quality and complete structure graphene.This requires to improve the existing preparation method,  explore new preparation path.And the development of preparation method require better ultrasonic equipment too.



Innovation:

  1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
  2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
  3. Use of the digitally controlled power, to ensure that all the time in the best condition.
  4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
  5. The integrated piping made of stainless steel #316.
  6. Overall liquid flow-controllable
  7. Use network-based CAN-bus technology, all working parameters can have room remote control.



Applications:

  • Ultrasonic mixing
  • Ultrasonic dispersing and deagglomeration
  • Ultrasonic Emulsifying
  • Ultrasonic Sonochemistry
  • ......



1000 L/Hr ultrasound sonochemical system for biodiesel production , high power , ECO
