|Generator:||Digital Mode||Control:||Remote Control|
|Application:||Dispersing||Probe:||Different Size And Type Optional|
|Capacity:||More Than 100L|

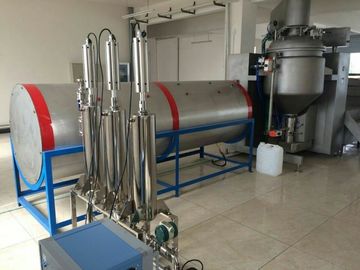

High Power Ultrasonic Processor Sonochemistry Equipment For Nano Particles Production
Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute
leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.
Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.
As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.
Recommendation of ultrasonic system (exfoliated type)
|Main advantages||High output intensity, high cavitation effect|
Recommendation of ultrasonic system (Dispersing type)
|Frequency||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz|
|Working type||Reactor / container||Reactor / container||
/ Flow chamber
/ Flow chamber
/ Flow chamber
Recommendation of ultrasonic machine (Industrial level)
Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and
110v or 220v
|110v or 220v||110v or 220v||110v or 220v||110v or 220v||110v or 220v|
Ultrasound is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasound can be tested in lab and bench-up scale before the results are scaled up to the commercial level.
1. Core parts withTitanium materials.
2. Ultrasonic horn with different size and type for selection
3. Matching with digital generator, auto-tuning, auto search frequency
4. Power adjustable from 1% to 99%
5. Frequency range from 19khz to 21khz
6. Lab and bench-up scale for testing
T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
Use of the digitally controlled power, to ensure that all the time in the best condition.
Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
The integrated piping made of stainless steel #316.
Overall liquid flow-controllable
Use network-based CAN-bus technology, all working parameters can have room remote control.
Ultrasonic dispersing and deagglomeration
Nano-size dispersions , ultrasonic processor for nano particles production , high power
