Product Details:
|
| Product Name: | 30khz Ultrasonic Transducer | Frequency: | 30Khz |
|---|---|---|---|
| Power: | 800W | Connect Screw: | M8 Or M8*1 |
| Ceramic Diameter: | 30mm | Qty Of Ceramic: | 4pcs |
| Capacitance: | 6.2-6.9nf | Application: | Cutting Or Welding |
| Finish: | Depending On Customer's Requirements | ||
| High Light: | ultrasonic piezoelectric transducer,high frequency ultrasonic transducer |
||

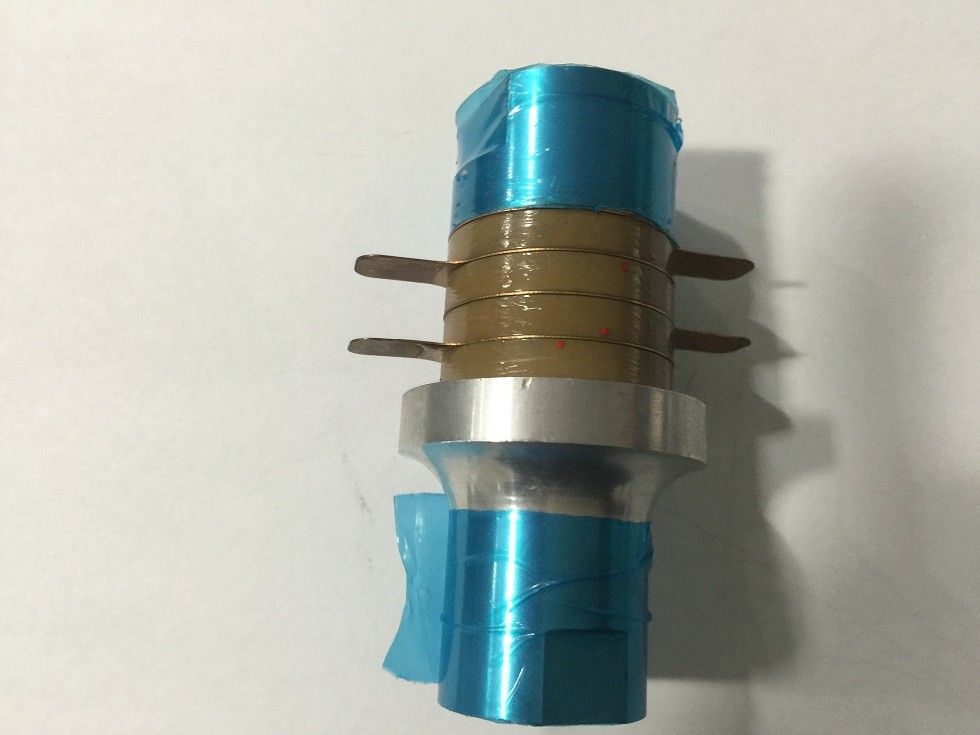

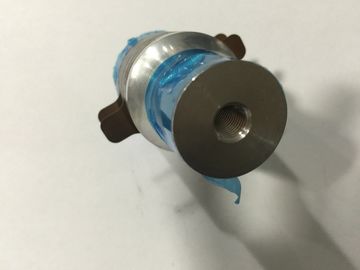

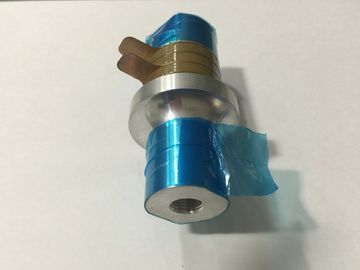

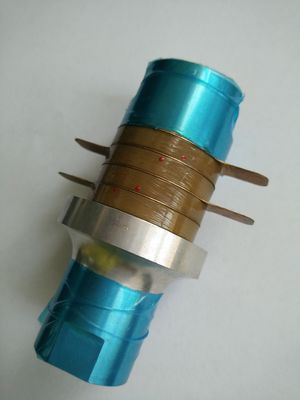

Upside Down Trumpet 30khz High Power Ultrasonic Transducer 4pcs 30mm Ceramics
Specifications:
|
Model |
HS-3030-4D |
|
Frequency |
30khz |
|
Output power |
800watt |
|
Joint bolt |
M8 or M8*1 |
|
Ceramic disc Diameter |
30 mm |
|
Quantity of Ceramic discs |
4 pcs |
|
Capacitance |
6.2~6.9nf , |
|
Amplitude |
8um |
|
Application |
Cutting or Welding |
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
|
Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
|
Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
|
Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
Upside-down Trumpet Type with 4pcs 30mm Ceramics, 30khz Ultrasonic transducer
