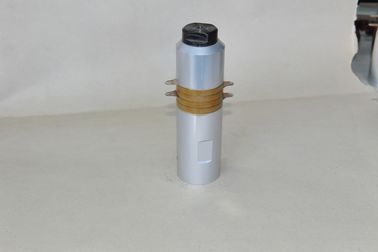

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding
5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding 5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding

Large Image :  5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5015-4Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding

Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: M18*1.5
Ceramic Diameter: 50mm Capacitance: 12~13nf
Type: NTK Type Application: Welding
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding



Specifications:



Model

HS-5015-4Z

Frequency

15khz

Output power

1500watt

Joint bolt

M18*1.5

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

4 pcs

Capacitance

12~13nf

Amplitude

12um

Application

Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.





Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

 at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

 longer time.





Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

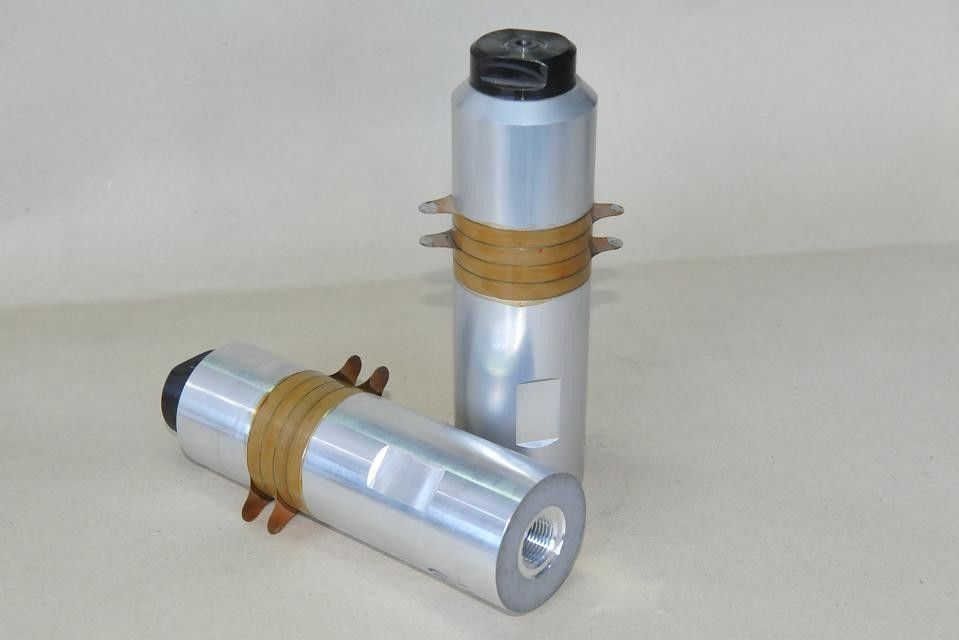

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding

5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding 0



5015-4Z 1500w Ultrasonic Welding Transducer For Auto Welding 1
