Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene

China Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene supplier
Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene supplier Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene supplier

Large Image :  Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS205-L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 2000W Weight: 35Kg
Generator: Digital Mode Control: Remote Control
Application: Dispersing Probe: Different Size And Type Optional
Capacity: More Than 100L


Automatic Tuning Ultrasound Sonochemistry Machine For Producing Graphene


Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide

direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.
Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in graphene

preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.




Lab level



Recommendation of ultrasonic system (exfoliated type)


Item No. HS205-L HS2020-L
Capacity 5L 20L
Output power 500W 2000W
Main advantages High output intensity, high cavitation effect
Frequency 20 kHz±1kHz


Recommendation of ultrasonic system (Dispersing type)



Item No. HS2010 HS2015 HS205-F HS2010-F HS2020-F
Capacity 20L 30L 10L 20L 30L
Output power 1000w 1500w 500w 1000w 2000w
Frequency 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz
Working type Reactor / container Reactor / container


/ Flow chamber


/ Flow chamber


/ Flow chamber



Recommendation of ultrasonic machine (Industrial level)


Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack

and pipe fittings


Item No. HS-GS10 HS-GS25 HS-GS50 HS-GS100 HS-GS200 HS-GS300
Annual output


25tons 30tons 100tons 200tons 300tons
Output Power


2000w 2000w 2000w 2000w 2000w
Total Power















20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz
Input Voltage

110v  or 220v

110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v
Total Volume



20㎡ 40㎡ 60㎡ 80㎡




Graphene With Ultrasonic

Currently we use two step exfoliation can obtain high concentration graphene dispersion, second ultrasound in 30 hours
reached the max concentration ---- 20 mg/ml, the instantaneous concentration as high as 63 mg/ml.
After using various methods, the graphite expansion and the space between graphene sheets increases, the vader Waals
between interlayers reduce, at the same time use the liquid phase exfoliation can make graphene production rate greatly
increased, and also can use water as solvent to obtain graphene, has a broad  industrial prospect.Up to now, several
companies use this way to achieve large production of graphene.
Through ultrasonic equipment, the surface of graphene reach 500 ~ 1000 m2 / g, thickness in 0.55 ~ 3.74 nm,
the purity is more than 95 wt %, straight in: 0.5 3 microns, layer number less than 10.



Altrasonic perfect the graphene


  • The development of graphene industry demand high quality graphene urgently;
  • The large scale production of graphene;
  • Before using Graphene. It is better to disperse by ultrasonic;
  • Ultrasonic dispersion for more stable graphene dispersion fluid.
  • In recently years, with its excellent performance and a variety of potential applications, graphene
  •  been developed fast. At the same time, people need a lot of high quality and complete structure
  •  graphene.This requires to improve the existing preparation method,  explore new preparation
  •  path.And the development of preparation method require better ultrasonic equipment too.

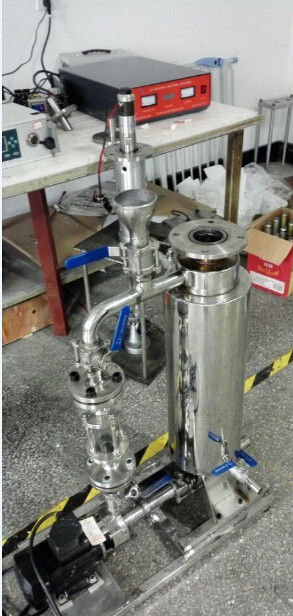

    T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
    Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
    Use of the digitally controlled power, to ensure that all the time in the best condition.
    Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
    The integrated piping made of stainless steel #316.
    Overall liquid flow-controllable
    Use network-based CAN-bus technology, all working parameters can have room remote control.


Unlimited prospects for graphene Market


    Optoelectronic products field, with its very good light transmittance, conductivity and flexibility, playing a role in the touch
    screen, wearable devices, OLED, solar energy and other fields.
    Energy technologies.
    Functional composite materials, by adding the graphene into various shape matrix, can be prepared with good electrical conductivity, thermal conductivity, processing, damage resistance of special materials, it has potential applications in integrated circuit, heat sink, high toughness containers.
    Microelectronic device.
    Biomedicine and sensor field


High power ultrasonically assisted Preparation of graphite nanoplatelets and graphene sheets
