|Generator:||Digital Mode||Control:||Remote Control|
|Application:||Dispersing||Probe:||Different Size And Type Optional|
|Capacity:||More Than 100L|
Industrial Ultrasonic Sonochemistry Dispersing Graphene Solution , Remote Process Capability
Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute
leading core technology, the most stable and mature manufacturing technology, rich experience, can provide
direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.
Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in graphene
preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.
Recommendation of ultrasonic system (exfoliated type)
|Main advantages||High output intensity, high cavitation effect|
Recommendation of ultrasonic system (Dispersing type)
|Frequency||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz||20 kHz±1kHz|
|Working type||Reactor / container||Reactor / container||
/ Flow chamber
/ Flow chamber
/ Flow chamber

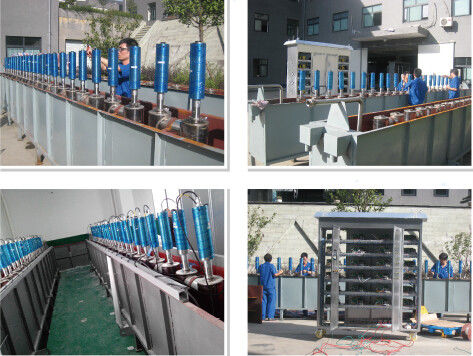

Recommendation of ultrasonic machine (Industrial level)
Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and
110v or 220v
|110v or 220v||110v or 220v||110v or 220v||110v or 220v||110v or 220v|
Graphene With Ultrasonic
Currently we use two step exfoliation can obtain high concentration graphene dispersion, second ultrasound in 30 hours
reached the max concentration ---- 20 mg/ml, the instantaneous concentration as high as 63 mg/ml.
After using various methods, the graphite expansion and the space between graphene sheets increases, the vader Waals
between interlayers reduce, at the same time use the liquid phase exfoliation can make graphene production rate greatly
increased, and also can use water as solvent to obtain graphene, has a broad industrial prospect.Up to now, several
companies use this way to achieve large production of graphene.
Through ultrasonic equipment, the surface of graphene reach 500 ~ 1000 m2 / g, thickness in 0.55 ~ 3.74 nm,
the purity is more than 95 wt %, straight in: 0.5 3 microns, layer number less than 10.
Altrasonic perfect the graphene
T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
Use of the digitally controlled power, to ensure that all the time in the best condition.
Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.

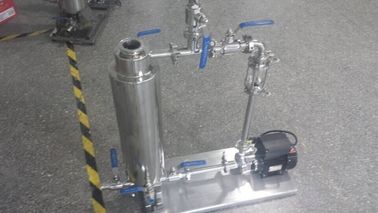

The integrated piping made of stainless steel #316.
Overall liquid flow-controllable
Use network-based CAN-bus technology, all working parameters can have room remote control.
Unlimited prospects for graphene Market
Optoelectronic products field, with its very good light
transmittance, conductivity and flexibility, playing a role in
screen, wearable devices, OLED, solar energy and other fields.
Functional composite materials, by adding the graphene into
various shape matrix, can be prepared with good electrical
conductivity, thermal conductivity, processing, damage resistance
of special materials, it has potential applications in integrated
circuit, heat sink, high toughness containers.
Biomedicine and sensor field
High power ultrasonically assisted Preparation of graphite nanoplatelets and graphene sheets
