100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment

100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment
100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment 100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment 100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment

Large Image :  100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: BV
Model Number: HS-ZJS-100N
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment

Description
Product Name: Ultrasonic Analog Generator Frequency: 60Khz
Output Power: 100W-200W Voltage: 220V 50/60Hz
Working Type: Continous Mode Or Pulse Mode Optional Size: 280*320*150 Mm
Net Weight: 4kgs
High Light:

ultrasonic generator

,

ultrasound generator



100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment



Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.

Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.





Specifications:



Model

HS-ZJS -100N

Frequency

60khz

Output power

100-200watt

Working type

Continous mode or Pulse mode optional

Size

280*320*150 mm

Voltage

220V 50/60HZ

Net weight

4kgs

Temperature

≤300℃

Moisture

≤85%RH


Competitive Advantage:

★ The use of high-quality electronic components assembly.
★ Advanced and reliable protection circuit makes the reliability is greatly improved.
★ FM and frequency automatic compensation, frequency of the digital display.
★ Frequency deviation, working current two meter indication and protection function.
★ According to the customer request interface plug.
★ Has the advantages of simple structure, easy to repair, cheap.


Comparison:





Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement





WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment

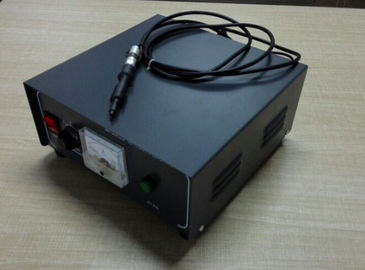

100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment 0

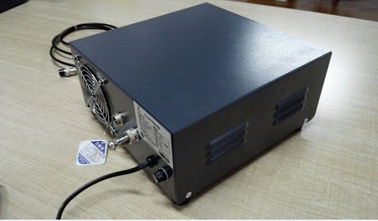

100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment 1

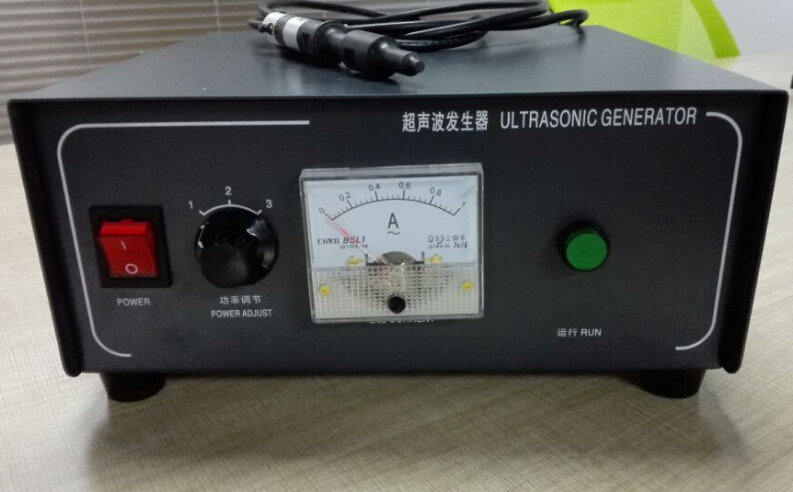

100w 60khz Analog Ultrasonic Generator For Welding Machine , Power Manual Adjustment 2
