With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator

With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator
With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator

Large Image :  With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-M2010
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wood case
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator

Description
Power: 500w Power Required: 110V/220V AC And 50/60Hz
Frequency: 20kHz Control: CPU Control,automatic Scanning/tracking
Components: Digital Generator, Transducer, Booster, Horn Materials Of Horn: Special Steel
Tool Speed: 6000rpm Machine Hard Material: With More Than 60 Rockwell Hardness
High Light:

ultrasonic grinding machine

,

ultrasonic drilling machine

With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator



Specification:



Ultrasonic machining, also known as ultrasonic impact grinding, is a machining operation in which a vibrating tool oscillating at ultrasonic frequencies is used to remove material from the workpiece, aided by an abrasive slurry that flows freely between the workpiece and the tool. It differs from most other machining operations because very little heat is produced. The tool never contacts the workpiece and as a result the grinding pressure is rarely more than 2 pounds, which makes this operation perfect for machining extremely hard and brittle materials.





Frequency 20 Khz
Output Power 500W
Power required 110V/220V AC and 50/60Hz
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 20 KG   ( Determined by the size of the horn )
Generator Digital Generator





Principle:



Ultrasonic machining process uses a power supply that converts conventional line voltage to 20KHz

electrical energy.

This high-frequency electrical energy is provided to a piezoelectric converter that changes high frequency electrical energy into mechanical motion.

The ultrasonic motion from the converter is amplified and transmitted to the horn and cutting tool.

This causes the horn and attached cutting tool to vibrate perpendicularly to the tool face thousands of

times per second with no side to side motion.

A recirculating pump forces E/Z Pump™ abrasive, suspended in a liquid medium, between the vibrating

tool face and the workpiece.

The abrasive particles strike the workpiece at 150,000 times their own weight.

These tiny abrasive particles chip off microscopic flakes and grind a counterpart of the tool face.





The advantages of ultrasonic machining over ordinary machining:



  • Virtually any hard material can be machined
  • Little heat is produced
  • Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape.    Custom "cookie cutter" tools can cut complicated shapes.
  • good surface finish and higher structural integrity is obtained



ultrasonic assisted grinding with specially coated tools , integrated in milling machining processing

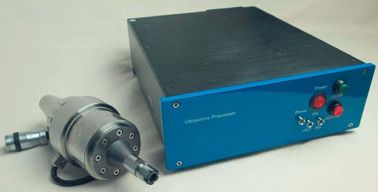

With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator 0

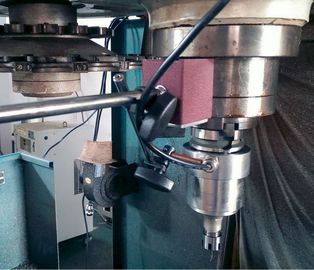

With 6000RPM tool speed Ultrasonic Milling machine, including tool holder and digital generator 1
