Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt

Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt
Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt

Large Image :  Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt

Description
Product Name: Digital Ultrasonic Power Supply Frequency: 15khz To 70khz
Frequency Tuning Method: Auto Tuning Output Power: 100w To 5000w
Voltage: AC220V Or 110V Net Weight: 10kgs
Power: Adjustable From 20% To 100% Amplitude: Adjustable From 20% To 100%
Screen: LCD Screen
High Light:

ultrasonic generator

,

ultrasound power supply



Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt


Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy, even reach 60khz. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.


Applications:

Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.



Selection items:



Item No. Frequency Power
HS-G-D15 15KHZ



1500W

1800W

2000W

2600W

3200W

4200W

5000W



HS-G-D20 20KHZ



1500W

1800W

2600W

3000W



HS-G-D28 28KHZ



500W

800W

1000W



HS-G-D30 30KHZ



500W



HS-G-D35 35KHZ



500W



HS-G-D40 40KHZ



500W



HS-G-D60 60KHZ



200W



HS-G-D70 70KHZ



100W





Specifications:



Model

HS-G-D

Frequency

15khz to 70khz

Output power

100 - 5000watt

Frequency tuning method

Auto tuning

Automatic frequency adjustment range

±2

Power adjustable

20%-100%

Frequency adjustable

20%-100%

Net weight

10kgs

Voltage

AC220V or 110V



Technical Parameters:



Maximum Output Power 10% above Normal Power
Constant Amplitude 205 - 265 V AC
Amplitude 60-100% in 5% steps
External Amplitude Setting over digital inputs
Time Mode 0.005 - 9.999 s
US Stop Mode Integrated
Trigger 0.000 - 9.999 s
Valve Output Integrated
24V Supply for I/O Integrated 500mA short circuit protected
Inputs opto couplers 20 - 28 V DC / 7 mA
Outputs opto couplers 22 - 28 V DC / max. 250 mA
Emergency Stop Message in Display
Error Message Display Text Message with Number
Error Message Hardware Output / Buzzer
Interface for PLC Integrated
Ambient Temperature 0 - 50 Grad Celsius
Design & Production Switzerland
Auto Tuning Real time
Display LCD screen with backlight



Competitive Advantage:


1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.


Comparison:




Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement








WHY CHOOSE ALTRASONIC ?





1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.





Auto tuning Ultrasonic welding generator For spot welder, 100watt to 2000watt, Small size, easy operator

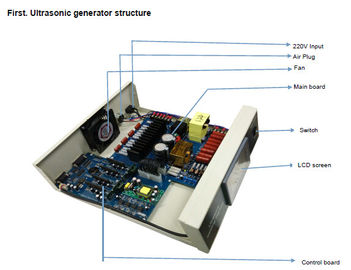

Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt 0

Small Auto Tuning Ultrasonic Power Supply For Spot Welder , 100 Watt To 2000 Watt 1
