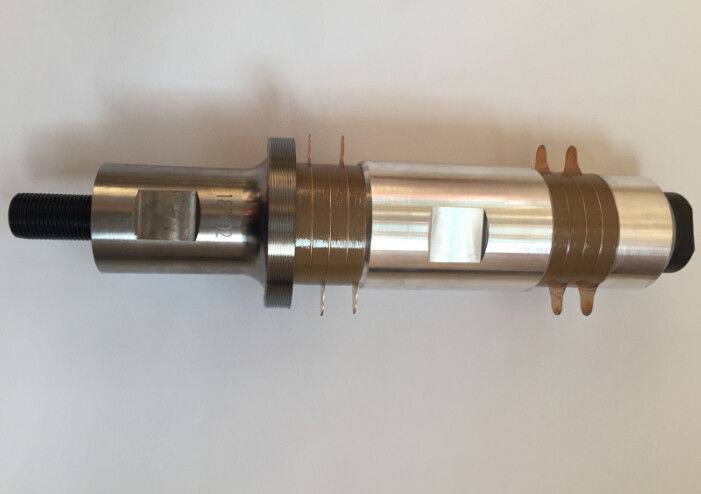

Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs

Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs
Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs

Large Image :  Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-8Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month

Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs

Description
Product Name: Ultrasonic Welding Transducer Frequency: 20Khz
Ceramic Diameter: 50mm Capacitance: 17.4~18 NFf
Type: NTK Type Application: Sonochemistry System, Liquid Processor
Power: 6000 - 8000w
High Light:

ultrasonic piezoelectric transducer

,

high frequency ultrasonic transducer

Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs

Specifications:



Model

HS-5020-8z

Frequency

20khz

Output power

6000-8000watt

Joint bolt

M20

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

8 pcs

Capacitance

17.4~18 nf ,

Amplitude

10um

Application

Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs



Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs 0



Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs 1



Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs 2



Liquid Processor 6000 Watt Ultrasound Transducers With 8 Pcs Ceramic Discs 3
