Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

Certification
China Hangzhou Altrasonic Technology Co., Ltd certification
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

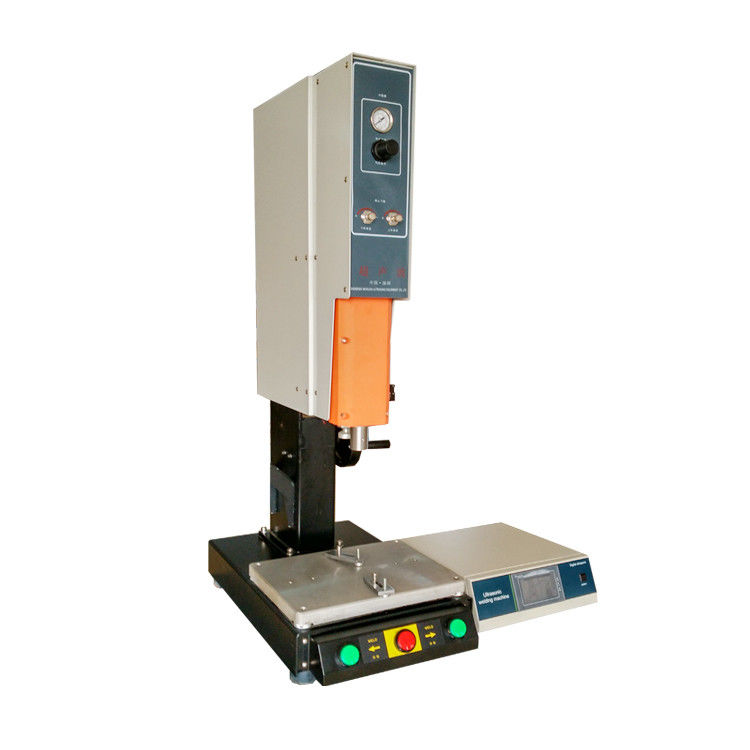

Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps
Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

Large Image :  Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 200 units per month

Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

Description
Product Name: Plastic Assembly Technologies Of Ultrasonic Welding Machine For Automotive Industry, Ato Lamps, Door Frequency: 28Khz
Output Power: 800W Welding Capability: 8 ~ 20 M/m φ
Net Weight: 95kg Line Source: 220V 5A
High Light:

plastic spot welder

,

ultrasonic plastic welder



Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps



Description:



Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.



Applications:



Toy industry: such as toy gun, water gun, telephone and rag baby etc.

Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

Car industry: Car light.

Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.

General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.



Specifications:



Model HS-20 HS-15 HS-H20 HS-H15 HS-28
Frequency 20KHZ 15KHZ 15KHZ 15KHZ 28KHZ
Output Power 2,000W 2600W 2400W 4200W 800W
Welding Capability 130 m/m φ 160 ~ 200 m/m φ 160 ~ 200 m/m φ 160 ~ 200 m/m φ 8 ~ 20 m/m φ
Dimension 420 x 630 x 920 mm 420 x 630 x 920 mm 420 x 630 x 920 mm 420 x 630 x 920 mm 420 x 630 x 920 mm
Net Weight 100 kg 110 kg 110 kg 110 kg 95 kg
Line Source 220V 10A 220V 10A / 220V 15A 220V 10A / 220V 15A 220V 10A / 220V 18A 220V 5A




Competitive Advantage:



Service: Timely feedback; Free design; 1 year Warranty.

Quality: Full testing before shipping; we reputation from customer.




Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps



Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps 0



Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps 1



Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps 2
