Product Details:
|
| Frequency: | 60khz | Max. Output Power: | Less Than 100watt |
|---|---|---|---|
| Application: | Welding Plastic Parts Or Sheets | Frequency Tuning Method: | Frequency Tuning Method |
| Components: | Ultrasonic Transducer, Generator And Embedding Horn | Power Adjusting Method: | 20-100% |
| Net Weight: | 10kg | Power Supply: | Digital Mode |
| High Light: | plastic spot welder,ultrasonic plastic welder |
||

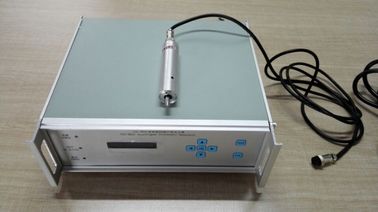

Low Energy Consumption Ultrasonic Plastic Welding Machine 60 Khz For PC Connector
Description:
60khz Ultrasonic plastic welding machine can be used in plastic welding applications, and other plastic materials samples.
Specifications:
|
Components and Parts |

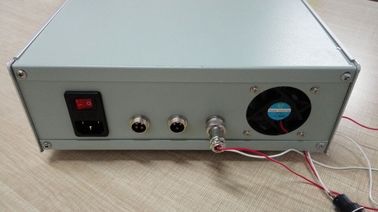

Ultrasonic digital generator |
|
Booster |
|
|
Converter |
|
|

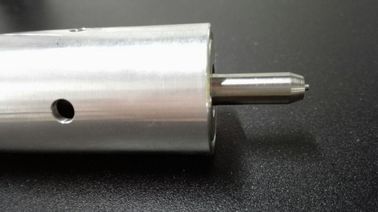

Embedding / welding horn |
|
|
Protective Sleeve (Nylon and Aluminum optional) |
|
|
HF Cable |
|
|
Power cord |
Principle:
Transmitted ultrasonic energy through welding parts to welding area, local high temperature will happen due to high acoustic resistance between two welding interface places. Also, no enough time dissipating out heating energy timely because of poor plastic thermal conductivity, heating energy gathered in welding area since could not dissipating out timely, the two plastic contact areas will welt rapidly, coupled with a certain pressure, it makes fusion to one unite. When ultrasonic stop function, and keep the pressure sustain to make its solidification molding, finally forming a strong molecular chain, which achieve the purpose of welding. And the welding strength can close to raw material body strength.
Applications:
provide a range of flexible and efficient machine solutions for processing RFID inlays used in the secure eID (ePassports, eID cards, eHealth cards) & ePayment sectors as well as the contactless card markets.
Main advantages:
1. Steady welding point, completely eradicate insufficient solder technically.
2. The size of welding spots is the same, equality line, good effect on uniformity.
3. The welding spot is small.
4. To leave out the immersion tin step before doing welding ,save an operator.
5. After skilled in welding, much faster than the way to use searing iron to do weld.
6. On the process on manufactory,there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
7. To select the the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
8. Low power consumption, to save production cost for manufactory enterprise.
low energy consumption 60 khz ultrasonic welding machine for welding plastic parts , PC connector
