35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE

China 35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE supplier
35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE supplier 35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE supplier 35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE supplier

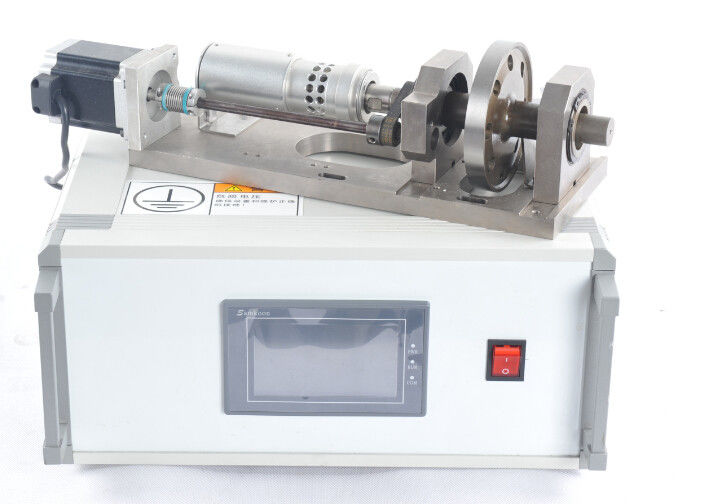

Large Image :  35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSF59B-TB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 35khz Max. Output Power: 800watt
Application: Sealing Or Welding Machine Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer, Generator And Wheel Power Adjusting Method: 20-100%
Net Weight: 30kg Power Supply: Digital Mode



35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE





Description:



The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.





Specifications:



Model

HSF59B-TB

Frequency

35 KHz

Power

800 W

Rotary Welding Horns Width

12 mm

Power Adjust Method

File or Continuous

The Horns Surface Hardness

More than HRC56

Real-time Display

Working Frequency and Working Current

Synchronizing Wheel Specifications

46XL Trapezoidal Tooth,Width16mm

Synchronizing Belt Matched

The Length is not more than730mm,the Width 12mm

Allowable Rotation Speed

100 r/min.

Install Bolt

M8, 4 pcs





Application:



Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.





Principle:



With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.



Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.





Function:



Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - collection





Applications:



Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.





Main advantages:



  • More stability.
  • Easy operation.
  • The wheels and most of parts are made from titanium materials, long service life.
  • Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.
  • Easily integrated on customers' current processing line.



Automatic 35kHz Ultrasonic sewing machine for fabric sealer , welding , sewing , new item

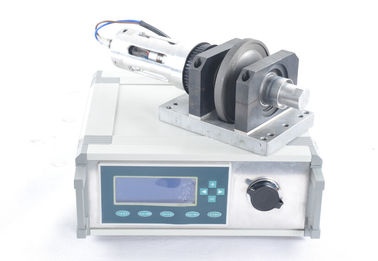

35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE

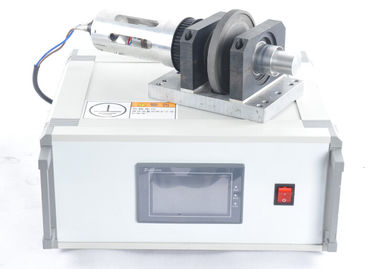

35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE

35Khz Automatic Ultrasonic Sealing Machine , Heat Sealing Equipment CE
