Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W

China Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W supplier
Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W supplier Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W supplier

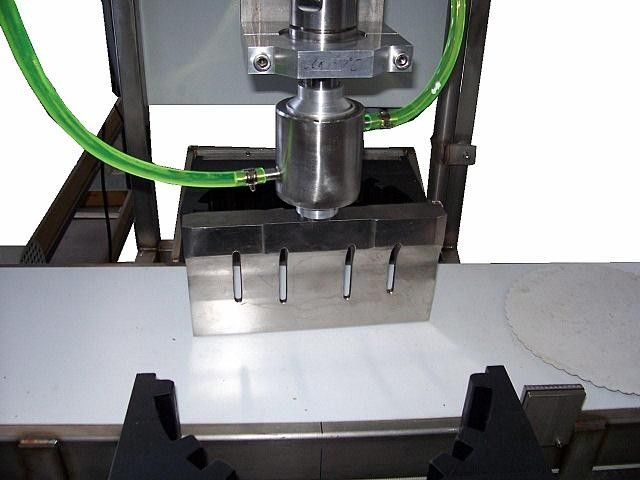

Large Image :  Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSFC305

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wood case
Delivery Time: 5days
Payment Terms: T/T
Supply Ability: 200 Set per month
Contact Now
Detailed Product Description
Frequency: 20Khz Material: Titanium
Blade: 305MM Power: 800W

Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W



Description:



The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.

Ultrasonic cutters can smoothly cut difficult-to-cut materials.
They are small in size and do not require large installation areas. Special equipment is not required for the installation. They are small enough to be hand-held for many operations. They can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

The ultrasonic cutter is composed of a “transducer” that generates vibration and an “oscillator” that drives the transducer. A piezoelectric element is used for the transducer. When voltage is applied, the piezoelectric element displaces the transducer by a few micrometers. Periodically applying voltage generates vibration. Each object has its special frequency, by which the object is stable and easy to vibrate. By adding an external force that corresponds to that special frequency, a small force can obtain a large vibration. This phenomenon is called resonance.

In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.



Ultrasonic cutting advantage and features:



1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.





FREQUENCY

20Khz

POWER

800W

INPUT

AC110-240V, 50/60Hz

POWER CONTROLLER

stepping or continuous

MATERIAL OF CUTTING HEAD

, stainless steel, titanium alloy, alloy steel.

MACHINE WIGHT

15~18KG

ACCESSORIES

foot switch, additional blade

COOLING DEVICE

compressed air mouth can be installed.

CABLE LENGTH

3M or customized

FOOT SWITCH

available







Applications:



1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For  the automotive industry cutting



Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W



Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W





Powerful Ultrasonic Cake Cutting Machine 20 KHz , hand held cutter machine 2000 W
