Portable Ultrasonic Sealing Machine

China Portable Ultrasonic Sealing Machine supplier
Portable Ultrasonic Sealing Machine supplier Portable Ultrasonic Sealing Machine supplier Portable Ultrasonic Sealing Machine supplier

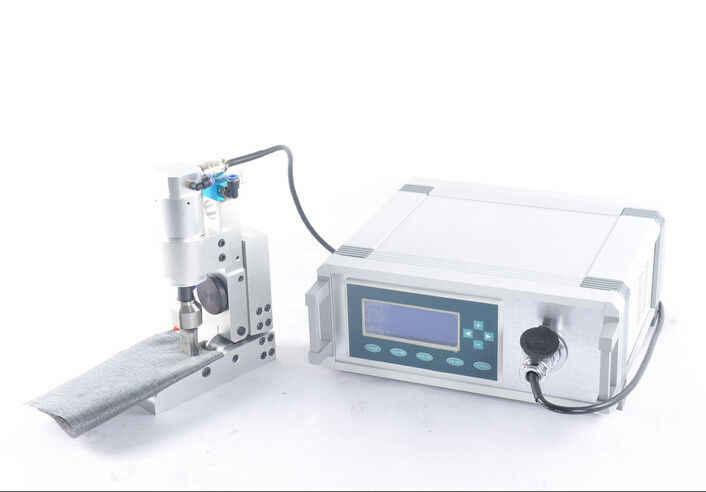

Large Image :  Portable Ultrasonic Sealing Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSSC40

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 40khz Max. Output Power: 500 - 800 Watt
Application: Sealing And Cutting Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer And Generator Power Adjusting Method: 30%-99%
Net Weight: 10kgs
High Light:

ultrasonic sealer


ultrasonic sewing machine

Portable Ultrasonic Sealing Machine For Cutting Textiles / Plastic Sheets

Compact Ultrasonic hand-held cutting unit for cutting of fabrics, non-woven materials, foils etc. Ideal for straight and curved cutting. With guiding rail on a cutting table the ideal cutting unit also for larger series.
Cost-efficient Ultrasonic Cutting equipment for studios, small and medium-sized enterprises. At best adequate for single cuts as well as for small up to medium series.




500W 800W


AC110-240V, 50/60Hz


stepping or continuous


aluminum alloy, stainless steel, titanium alloy, alloy steel.


4 kg-16KG


foot switch, additional blade


compressed air mouth can be installed.


2M or customized



With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For  the automotive industry cutting
Competitive Advantage:
1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge

3. Powerful, effective realiable

4. Low cost, easy operator. An operator only handle the probe and step the foot switch.
40kHz Portable Ultrasonic Cutter , ultrasonic sealing machine , for cutting Textiles Fabrics plastic sheets

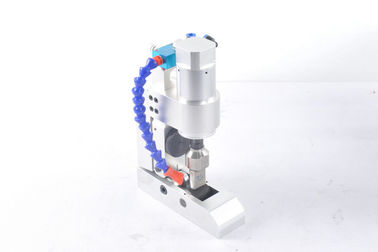

Portable Ultrasonic Sealing Machine 0

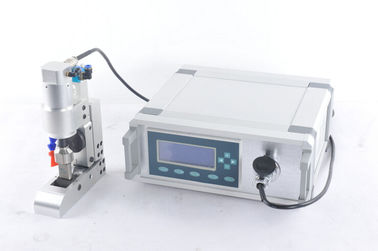

Portable Ultrasonic Sealing Machine 1

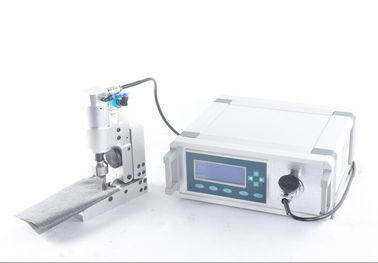

Portable Ultrasonic Sealing Machine 2
