High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine

China High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine supplier
High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine supplier High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine supplier High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine supplier

Large Image :  High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS - N1526

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 15khz Max. Output Power: 2600watt
Application: Non-woven Bag Making Machine Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer And Generator Power Adjusting Method: 30%-99%
Net Weight: 10kg



High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine





With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.





Components

ultrasonic transducer and ultrasonic generator

Frequency

15 khz

Power

2600w

Application

Non-woven bag making machine

Operation mode

Automation

Materials of horn

Steel or titanium optional

Type of horn

Depending on customer's requirements

Voltage 380V / 220V





Application:



  • Thermoplastic films (pouches and bags) Tubes, trays, and cups
  • Tubes, trays, and cups
  • Cardboard packaging with thermoplastic coating
  • Valves and vents on films / filter materials
  • Screw caps on coated cardboard packaging / films



Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - collection



Principle:



Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.



Advantages:



1. There’s no fog and spark in produce processing, won’t cause damage to fabric edge,

 and also can avoid deckle edge.

2. Chang of the ultrasonic cutting die is very easy, and the design of themoulds can

also made according to customer’s requirement.

3. Without pre-heating, and continuous operation is possible.

4. Machines can be combined to one set of equipments in order to sew large width

products once, for instance, guilt cover, gingham, etc.

5. The cutting moulds (cutting die) that be made of special alloy steel which has been

treated with special heat treatment technology, so the moulds with high wear resistance

 and gains a longer service life.

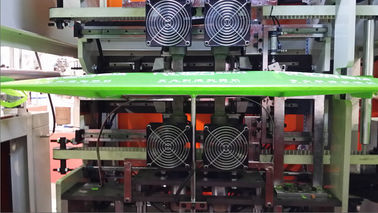

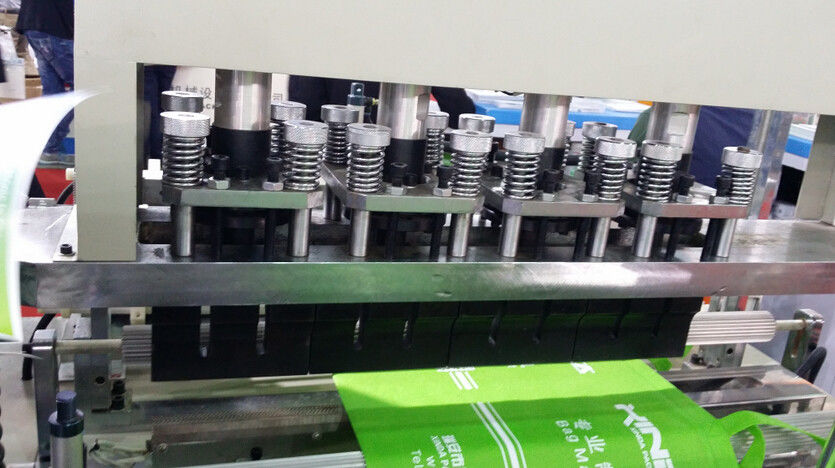

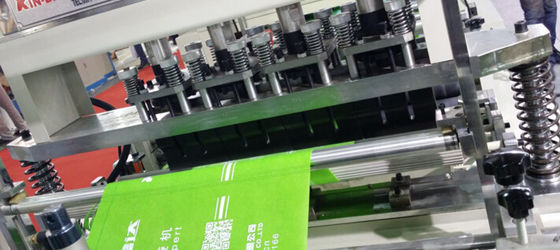

High power ultrasonic packing machine for bag closing , cutting and sealing processing system

High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine



High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine



High Power Ultrasonic Sealing Machine For Bag Closing , Ultrasonic Cutting Machine
