600W ultrasonic plastic spot welding machine, with various welding molds

China 600W ultrasonic plastic spot welding machine, with various welding molds supplier
600W ultrasonic plastic spot welding machine, with various welding molds supplier 600W ultrasonic plastic spot welding machine, with various welding molds supplier

Large Image :  600W ultrasonic plastic spot welding machine, with various welding molds

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW40

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 40khz Max. Output Power: 600watt
Application: Plastic Welding Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer And Generator Power Adjusting Method: 30%-99%
Net Weight: 13kg

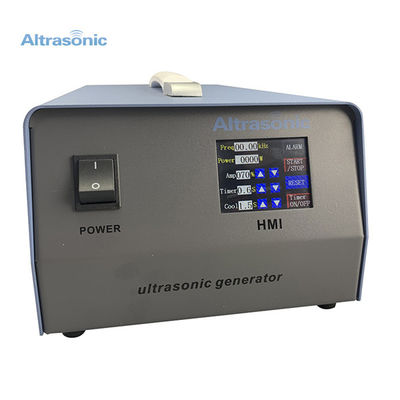

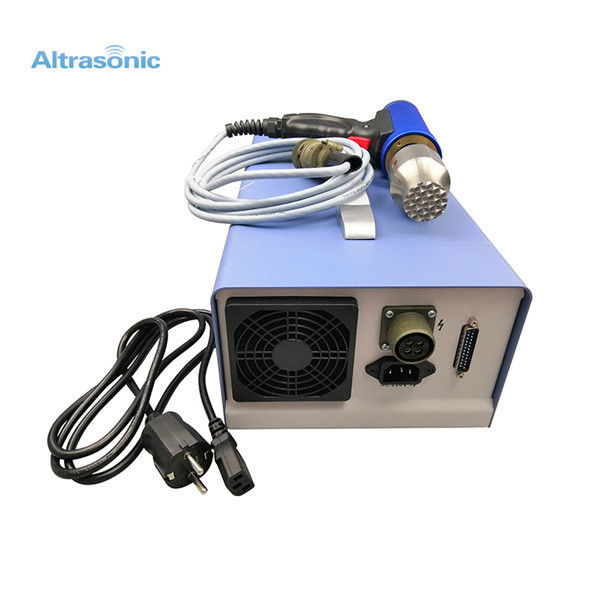

The 600W ultrasonic plastic spot welding machine







Description:



The 600W ultrasonic plastic spot welding machine adopts a hand-held design, and can replace the spot welding mold, the welding mold, the chain welding mold, the implant mold, the insert mold and the cutting mold according to the needs of the product.







Function:



1. Welding:

The welding head vibrating at ultra-high frequency of ultrasonic wave under the moderate pressure makes the joint surface of the two plastics generate friction heat and melt fusion at the same time. The welding strength can be comparable with the body, using suitable workpiece and reasonable interface design. It can achieve watertightness and airtightness, and eliminates the inconvenience caused by the use of auxiliary materials to achieve efficient and clean welding.


2. Riveting welding:

Ultrasonic ultra-high frequency vibration welding head, pressing the tip of the plastic product, so that it instantly melts into a rivet shape, so that the materials of different materials are mechanically riveted together.


3. Buried:

By means of the trajectory of the welding head and appropriate pressure, the metal parts (such as nuts, screws, etc.) are squeezed into the plastic hole and fixed at a certain depth. After completion, the tension and torque can be comparable. The strength of the traditional mold forming can eliminate the disadvantages of the injection mold being damaged and the injection slow.


4. Molding:

This method is similar to the riveting method. The concave welding head is pressed against the outer ring of the plastic product, and the ultrasonic hair is ultrasonically shaped and covered by the ultra-high-frequency vibration of the welding hair to be coated with the metal object to fix it, and The appearance is smooth and beautiful, and this method is mostly used in the fixed forming of electronic type and horn, and the fixing of lenses of cosmetics.


5. Spot welding:

Welding two pieces of plastic points without pre-designing the welding line to achieve the purpose of welding; for larger workpieces, it is not easy to design the workpiece of the welding line for point welding, and the welding effect can be achieved, and multiple points can be spot-welded at the same time.







Characteristics:



1. The whole machine is an integrated design, light and compact, and easy to retract;
2. Unique design, all-aluminum core, membrane switch panel;
3. Overload protection device, FET output part, mold automatic frequency chasing;
4. Three-digit position dial switch, 0.01-9.99S ​​precise time control;







Application:



Plastic spot welding machine is mainly used in: automotive door panels, automotive interior panels, automotive insulation cotton,

household appliances, non-woven products, stationery spot welding, mobile phone accessories, electrical device riveting, car signs,

folder positioning and other riveting and point Welding process.
