Lace welding equipment by Ultrasonic 20 kHz

China Lace welding equipment by Ultrasonic 20 kHz supplier
Lace welding equipment by Ultrasonic 20 kHz supplier Lace welding equipment by Ultrasonic 20 kHz supplier

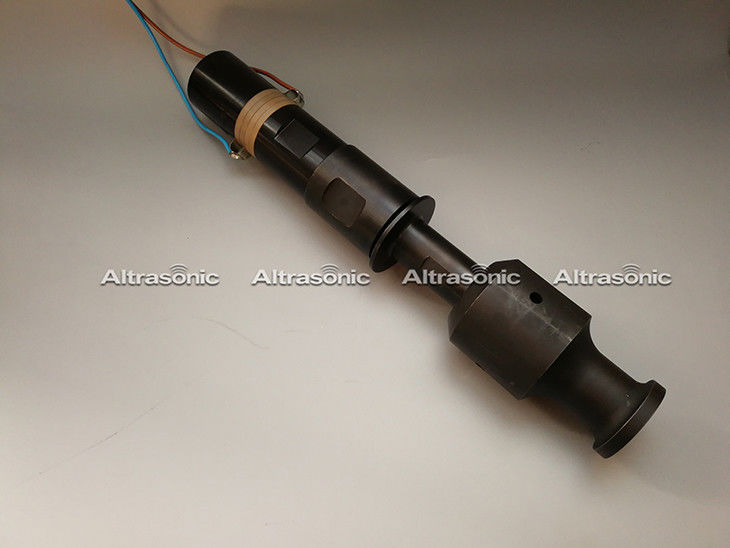

Large Image :  Lace welding equipment by Ultrasonic 20 kHz

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSWL20

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 20khz Max. Output Power: 2000watt
Electric Current:: 10A Generator: Analog Generator
Material Of Horn Steel: Steel Net Weight: 8kg

Lace welding equipment by Ultrasonic 20 kHz







The HS-WL20 ultrasonic welder horn is suitable for ultrasonic lace sewing machine. Ultrasonic lace sewing machine, is an efficient sewing, embossing equipment. Mainly used in the hem of the synthetic fiber cloth, welding, cutting, embossing, processing products with good water tightness, high production efficiency, without needlework accessories, melted smooth surface without burrs, feel good and so on.


Widely used in clothing, toys, food, environmentally friendly non-woven bags, masks and other industries.

Ultrasonic lace sewing machine, using the latest ultrasonic technology, widely used world famous components, with advanced technology, reasonable structure, reliable operation, easy operation and so on.




Technical Parameters:


Item No HS-WL20
Frequency 20Khz
Power 2000W
Voltage 200-240V, Alternating current
50-60hz, Single phase
Electric current 15A
Range of welding time 0.05-10/sec
Environment Temperature 5-50℃
Air supply requirements Clean dry compressed air, maximum pressure 7kg
Weight 25Kgs




Ultrasonic Welding Principle:


When ultrasonic effects on the contact area of thermoplastic plastic, it will produce tens of thousands times per second high-frequency vibration. This the high-frequency vibration achieves a certain amplitude, and passes the ultrasonic energy to the welding area through the welding pieces.


The welding time and welding horn pressure can be adjusted. The amplitude depends on transducer and booster. The three factors of interaction have a suitable value, if the energy exceeds the appropriate value, the plastic melting amount will be large, easy to deformation of welding; if the energy is small, it is not easy to solder, the pressure can not be too much. This optimum pressure is the product of the length of the welded part and the edge of the optimum pressure per 1mm.




Equipment applicable materials


Chemical fiber cloth, or chemical fiber blended fabric, chemical film is also more than 30% of woven, can be processed into the desired products, such as Nylon cloth, knitted fabrics, non-woven fabrics, T / R cloth, Trinidad and Tobago Cloth (Polyester cloth), glitter cloth, multi-layer cloth, as well as a variety of lamination film made of film covering film can be applied.




Equipment use function


(1) sealing, (2) pattern cutting,(3) cutting, (4) slitting, (5) cutting holes, (6) pressing graphics, (7) forming, (8) printing colors, Bronzing, (10) Flap and print, (11) welding metal wire fixed.




Applicable products


(1) Clothes lace (2) Bed cover (3) Pillow cover (4) Car cover (5) Tentage (6) Packaging tapes (9) Raincoat, Windbreaker, Snow Jacket, (10) Toys, (11) Gloves, (12) Tablecloths, (13) Chair covers, (17) Accessories, (18) Umbrellas, (19) Lampshades, (20) Filters and more.




Equipment function


(1) The use of ultrasonic vibration and special steel wheel, pressurized, you can get the use of the above functions.

(2) Processing does not smoke, sparks, does not hurt the edges of cloth, but also to avoid burrs.

(3) The change of the flower wheel is simple and convenient, the flower wheel of various figures can be changed according to the customer's need.

(4) No preheating during manufacture and continuous operation.

(5) Can be installed color paper, gold foil, up to India when pressure, bronzing function.

(6) can be more than one unit into a special machine, in order to complete a larger width of the product, such as quilt cover, umbrella and so on.

(7) Special alloy steel wheel made of material, and by special heat
