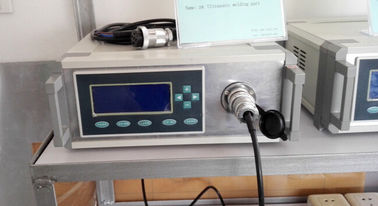

Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W

Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W
Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W

Large Image :  Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-ASDV6.3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation

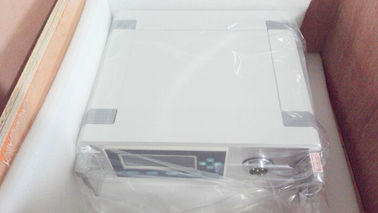

Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W

Description
Product Name: Ultrasonic Power Supply Frequency: 20khz
Frequency Tuning Method: Auto Tuning Output Power: 2000W
Voltage: AC220V Or 110V Net Weight: 10kgs
Power: Adjustable From 50% To 100%
High Light:

ultrasonic generator

,

ultrasound generator

Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W


Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy, even reach 60khz. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.


Applications:



Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.

Specifications:



Model

HS-ASDV6.3

Frequency

20Khz

Output power

2000watt

Frequency tuning method

Auto tuning

Automatic frequency adjustment range

±2

Power adjustable

50%-100%

Frequency adjustable

50%-100%

Net weight

12kgs

Voltage

AC220V


Competitive Advantage:


1. High stability: All-digital integrated circuits, use of US imports of processors interference, simplify the hardware structure, improving the reliability of the system.

2. Automatic frequency tracking.

3. Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.

4. Amplitude stepless adjustment: Amplitude setting range from 10% to 100%.

5. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of function prompts until technician troubleshooting.

6. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

7. Two kinds of welding mode: switch back and forth, so that a higher precision welding, soldering and better results.


Comparison:




Analog generator

Digital generator

Circuit

Analog circuit, discrete components

Digital circuit, the chip control

Automatic search

×

Automatic frequency tracking

×

Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation

×

24 hours of continuous work

×

Non resonant condition

×

LCD

×

Add the PLC protocol

×

Automatic circuit protection

Bad, easy to cause the damage of components

Good

Repair method

Professional repair

Module replacement







WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

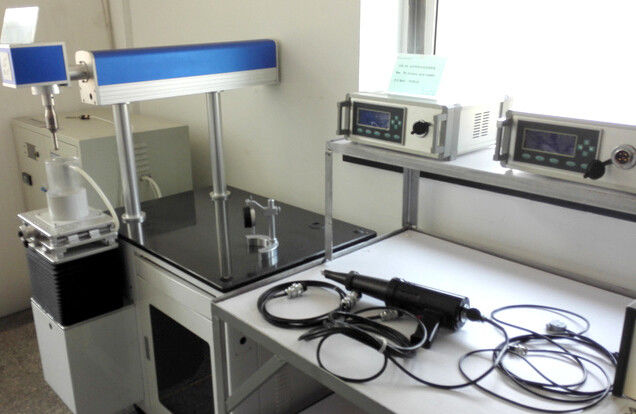

20khz 2000w ultrasonic power supply , control box , for ultrasonic plastic welding machine




Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W 0
Strong Output Ultrasonic Welder Power Supply Auto Tuning Frequency 2000W 1
