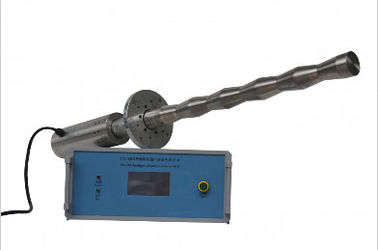

Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine

Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine
Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine

Large Image :  Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS2015
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month

Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 1500W Weight: 35Kg
Application: Degassing
High Light:

ultrasound sonochemistry

,

sonochemistry equipment

Automatic Ultrasound Sonochemistry For Bubbles Removal , Digital Homogenizer Machine



Lab level



Recommendation of ultrasonic system (exfoliated type)



Item No. HS205-L HS2020-L
Capacity 5L 20L
Output power 500W 2000W
Main advantages High output intensity, high cavitation effect
Frequency 20 kHz±1kHz




Recommendation of ultrasonic system (Dispersing type)





Item No. HS2010 HS2015 HS205-F HS2010-F HS2020-F
Capacity 20L 30L 10L 20L 30L
Output power 1000w 1500w 500w 1000w 2000w
Frequency 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz 20 kHz±1kHz
Working type Reactor / container Reactor / container

Recycling

/ Flow chamber

Recycling

/ Flow chamber

Recycling

/ Flow chamber





Recommendation of ultrasonic machine (Industrial level)



Ultrasonic Probe / Ultrasonic digital generator / Control system assembly / Reactor assembly / Rack and pipe fittings



Item No. HS-GS10 HS-GS25 HS-GS50 HS-GS100 HS-GS200 HS-GS300
Annual output

10tons

25tons 30tons 100tons 200tons 300tons
Output Power

2000w

2000w 2000w 2000w 2000w 2000w
Total Power

6000w

(2000w*3)

12000w

(2000w*6)

24000w

(2000w*12)

48000w

(2000w*24)

72000w

(2000w*36)

96000w

(2000w*48)

Frequency

20kHz±1kHz

20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz 20kHz±1kHz
Input Voltage

110v  or 220v

110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v 110v  or 220v
Total Volume

5㎡

10㎡

20㎡ 40㎡ 60㎡ 80㎡



The Principle of ultrasonic extraction processor:


Ultrasound in solution, will produce alternating pressure, capable of generating cavitation bubbles for cavitation threshold of acoustic wave propagation in liquid and can significantly improve the gas bubbles from the solution to the mass transfer rate.
Cavitation bubbles from the solution of tiny gas nuclei generated in the sparse acoustic phase due to the tensile stress (negative pressure) that would create these vacuoles. If the tensile stress persists after vacuolization, this space-time bubbles will expand to many times the original size. In this case, air bubbles remain spherical structure, then continued to grow, vibration, collapse.
When the role of ultrasound in the solution gas composition by gas - liquid interface "directional spread" into the cavitation bubbles, cavitation bubbles into the growth phase, when cavitation bubbles collapse at the surface of the solution, the gas will escape from the bubble in which resulting in a degassing.


Main Functions:

  • Foam is a large concentration of bubbles, the ultrasonic degassing of gas equipment is pre-generated foam, bubbles are not a large number gathered in front of the liquid foaming, degassing, or dissolution, mixing in the liquid gas defoaming, degassing.
  • The whole process does not use any antifoaming agent, a defoaming entirely physical manner, also called mechanical defoaming manner.
  • For the surface of the foam that has been generated, the device is not obvious, it needs to fit the way anti-foaming film together to solve them.


Other Applications:



  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.).



WHY CHOOSE ALTRASONIC ?



  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.



Automatic High power Ultrasonic Processors For Liquid Degassing And Deaeration , bubbles removal
