Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying

China Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying supplier
Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying supplier Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying supplier

Large Image :  Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS57B-ZB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description

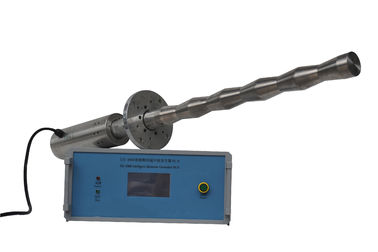

Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 1500W Weight: 35Kg

Laboratory Ultrasonic Ultrasonic Homogenization For Degassing / Emulsifying

Specifications:


Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy






Ultrasonics Degassing , What Gas? and Why? revealed why dissolved gas is detrimental to ultrasonic performance.  This blog will describe various ways in which dissolved gas can be minimized and eliminated to facilitate ultrasonic cleaning.  Since the most common liquids used in ultrasonic cleaning are water and water-based solutions, the following applies primarily to water although most liquids behave similarly.

The temperature of a liquid has a significant impact on how much gas can be dissolved in that liquid.  Cold water is able to dissolve much more gas than hot water.  You may have noticed that when you put water in a pot on the stove and turn on the burner, small bubbles start forming in the water long before it actually boils.  These bubbles are gas that is in excess of that the water can dissolve at the increased temperature provided by the burner.  You will also note that these bubbles frequently form on the sides of the pot.  This is because the contact of the water with the sides of the pot provide “nucleation sites” which facilitate the gas coming out of solution.  Increasing the temperature of a liquid reduces the amount of gas that the liquid can dissolve.  Ultrasonic cleaning tanks should be heated to the final operating temperature before use.  The ideal preparation is to heat the liquid several degrees above the process temperature and then cool it to the process temperature before use.  Doing this assures total degassing of the liquid at the process temperature.




Other Applications:

  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.).

Main Functions:



1. Save mixing time 20%~60%
2. Lower temps 30%~60%(30 degrees C)
3. easily to do installation
4. operation in high efficience
5. Extraction of the herb and triditional medicine plants effectively
6. Eigital generator surpporting the system; searching frequency automatically





WHY CHOOSE ALTRASONIC ?



  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.
