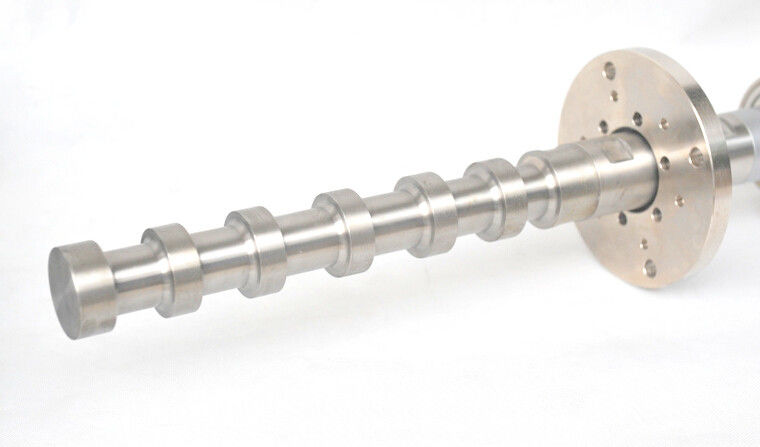

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE
Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE

Large Image :  Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS57B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE

Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 1500W Weight: 35Kg
High Light:

ultrasonic homogenization

,

sonochemistry equipment

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE

Specifications:



Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy





Ultrasonic extraction is the removal and recovery of organic analytes from a permeable solid matrix by means of a solvent which is energized by sound energy at frequencies in excess of those audible to the human ear. Energy may be introduced into the sample by means of an ultrasonic probe which is inserted into the sample or an ultrasonic bath into which the sample plus solvent is immersed. The ultrasonic energy may be strong enough to disrupt and pulverize the matrix, thus increasing the extractability of the analyte.

The operation of the extractor is intuitively easy to grasp. Extraction is viewed as being complete or close to complete.



Ultrasonic extraction is convenient and straightforward. Ultrasonic baths provide relatively reliable sources of extraction energy.



Ultrasonic extraction must be performed under conditions which protect the hearing of laboratory personnel. The ultrasonic generator may generate heat which may affect the extraction process. Ultrasonic probes become pitted when used for the extraction of abrasive matrices such as soil, thus changing the energy generated and affecting the extraction efficiency of the procedure. Ultrasonic baths provide less intense extraction energy. Extraction of total residue is the aim of ultrasonic extraction; little or no speciation is possible.



Other Applications:



  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.).

Main Functions:



1. Save mixing time 20%~60%
2. Lower temps 30%~60%(30 degrees C)
3. easily to do installation
4. operation in high efficience
5. Extraction of the herb and triditional medicine plants effectively
6. Eigital generator surpporting the system; searching frequency automatically





WHY CHOOSE ALTRASONIC ?



  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE



Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE 0

Chinese Herb Ultrasonic Sonochemistry , Ultrasonic Extraction Equipment CE 1
